Delivers larger-machine output without giving up restricted access
-
Provides excellent stability once the tracks are expanded
-
Moves efficiently between high-speed travel and high-torque grinding
-
Gives the operator better visibility and control
-
Levels grindings and clears debris using the hydraulic blade
-
Reduces time and fuel used on demanding stumps
-
Handles varied terrain with confidence
-
Approximately 890 mm narrow travelling width
-
Expandable tracks widening to approximately 1,325 mm
-
Wireless remote control
-
Four-speed ground-drive system
-
Traction control
-
Hydraulic grading blade
-
Powerful European Stage V-compliant engine configuration
-
Carlton Razor cutting system
-
Low ground pressure
Key Features
Why The 7015

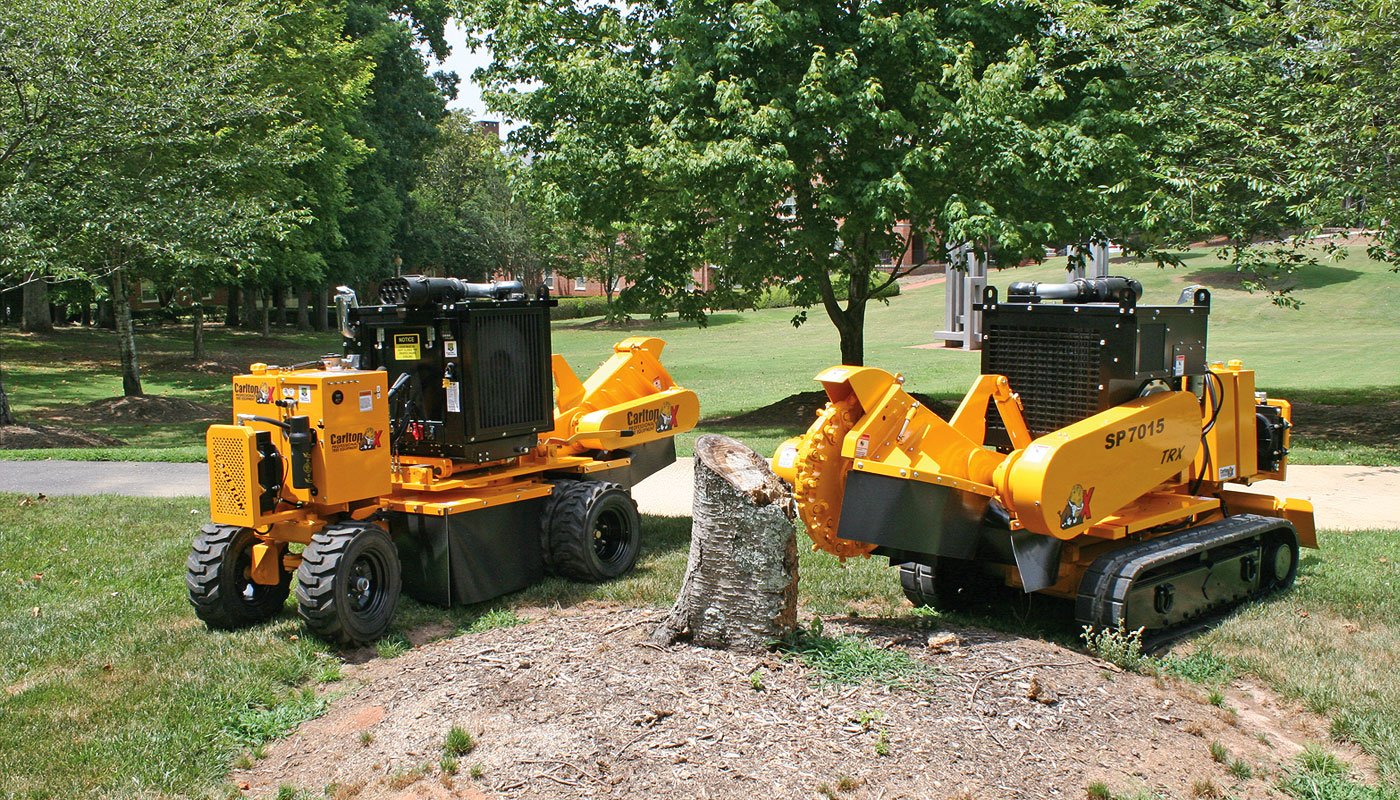

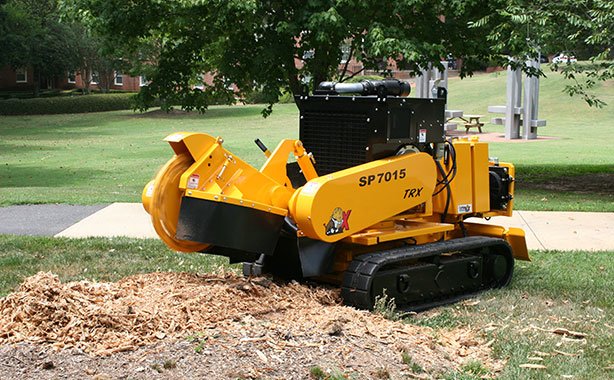

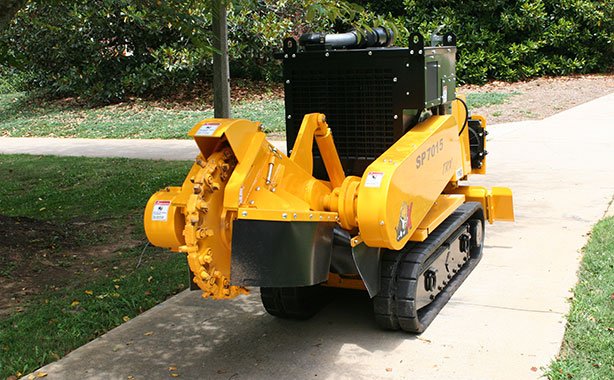

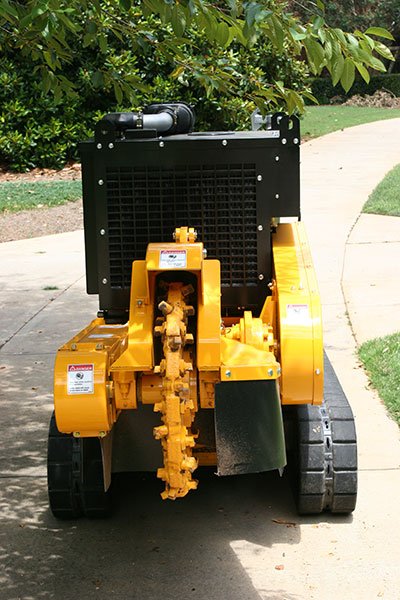

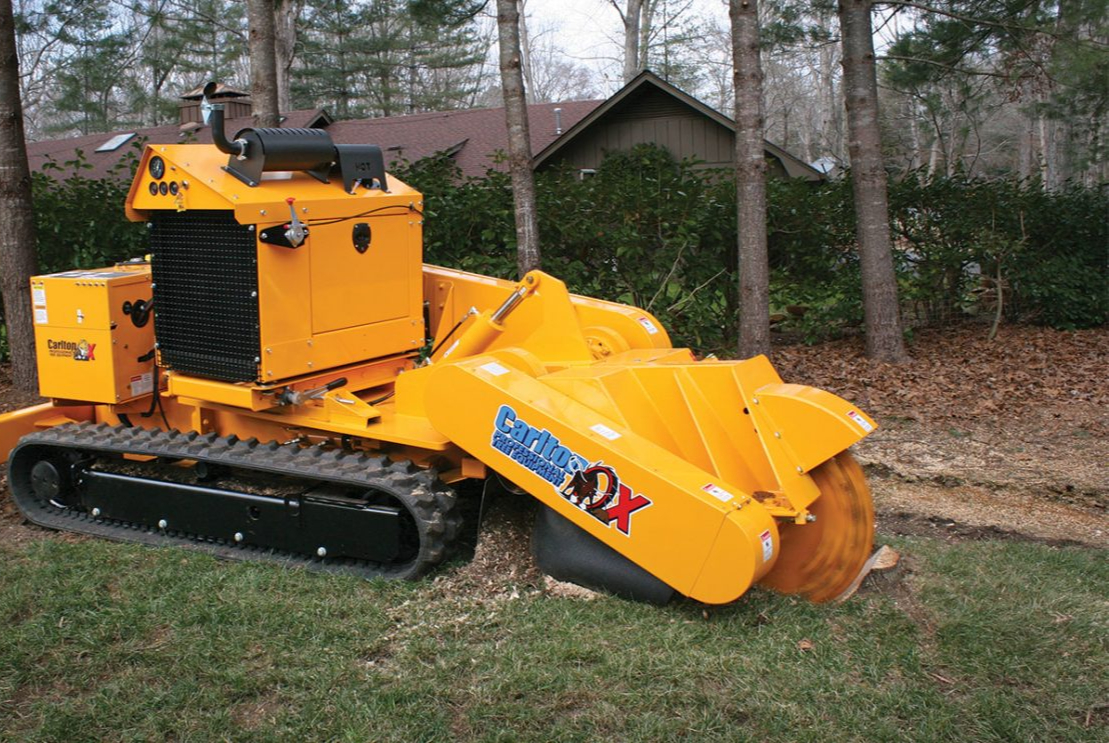

SP7015TRX Stump Grinder
Restricted Access. Unrestricted Output.
Created for contractors who have outgrown compact grinders but still need to enter restricted sites, the Carlton 7015 TRX combines high-output grinding with remarkable versatility. Its telescoping tracks retract for narrow access and expand to create a wide, stable footprint, while remote operation, traction control and multiple travel speeds help it move confidently from delicate residential ground to demanding commercial jobs.
Product Specifications
Engine option
1. 74 HP Turbocharged 4 Cylinder Kohler Diesel Tier 4 Engine
2. 74 HP Turbocharged 4 Cylinder Kubota Diesel Tier 4 Engine
Cutter depth below ground
15″ (HD = 18″)
Cutter height above ground
43″ (HD = 48″)
Cutter head swing
70″ Arc (HD = 72″ Arc)
Number of teeth on cutter wheel
48 or 44-Razor Wheel / 32-Standard Wheel
Cutter wheel diameter with teeth
28″
Type of Cutter Teeth
Hard Micro Structure Carbide
Fuel tank capacity
9.6 gallons (HD = 18 gal.)
Hydraulic capacity
9 gallons (HD = 15 gal.)
Track dimension
9 1/2″ X 58″ Long
Ground pressure
5.3 psi
Machine width
35″ Track Width Retracted<br/>48″ Track Width Extended
Machine height
73 1/2″
Machine length
130″ (HD = 151″)
DUE TO CONTINUOUS DESIGN IMPROVEMENTS, CONSULT FACTORY PRIOR TO ORDERING
