Powerful self-propelled wheeled platform
-
Hydraulic steering
-
Narrow single-wheel travelling configuration
-
Dual-wheel working configuration
-

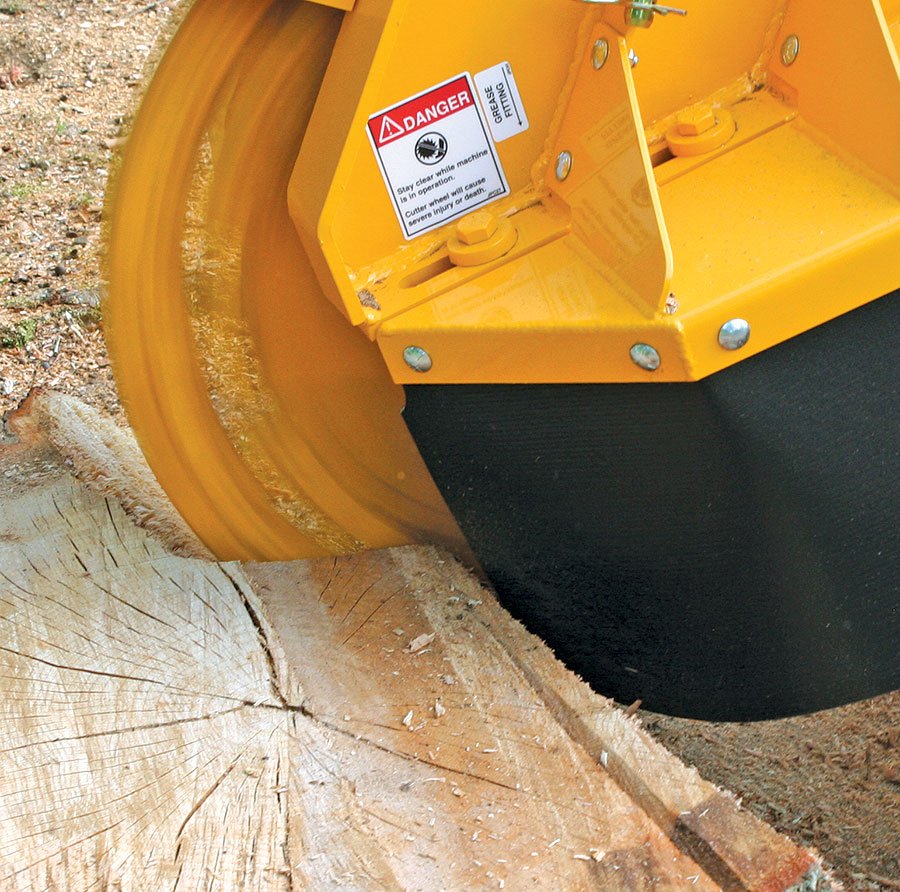

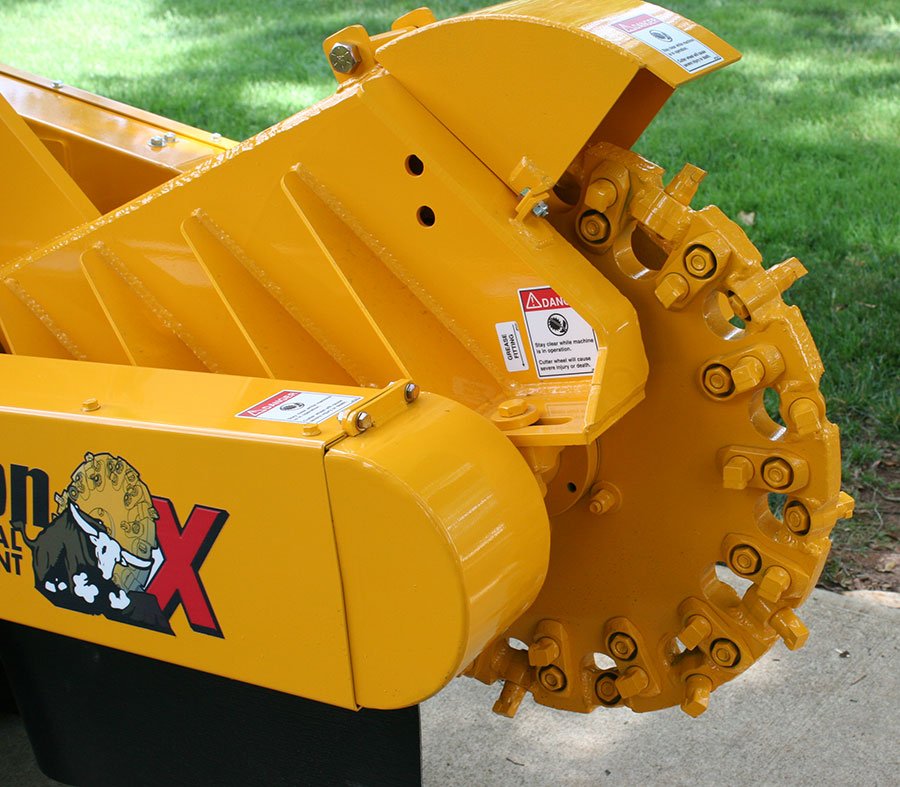

Large professional cutter wheel
-
High-output cutting system
-
Heavy-duty frame construction
-

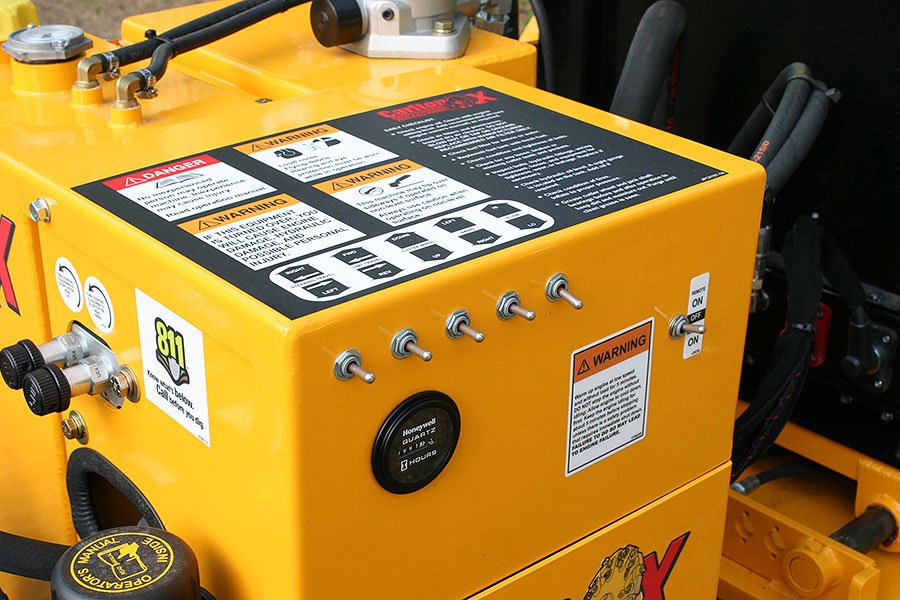

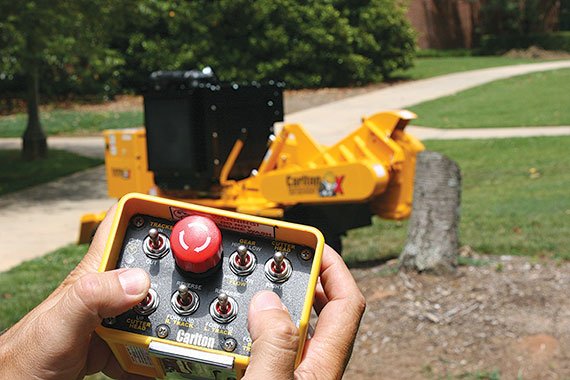

Operator-focused hydraulic controls
-
Travels rapidly across larger sites
-
Manoeuvres more freely than a large tracked machine
-
Creates a stable stance when the dual wheels are fitted
-
Reduces unnecessary damage to established ground
-
Processes larger stumps faster than compact grinders
-
Suits contractors moving through several jobs in one day
Key Features
Why The 7015

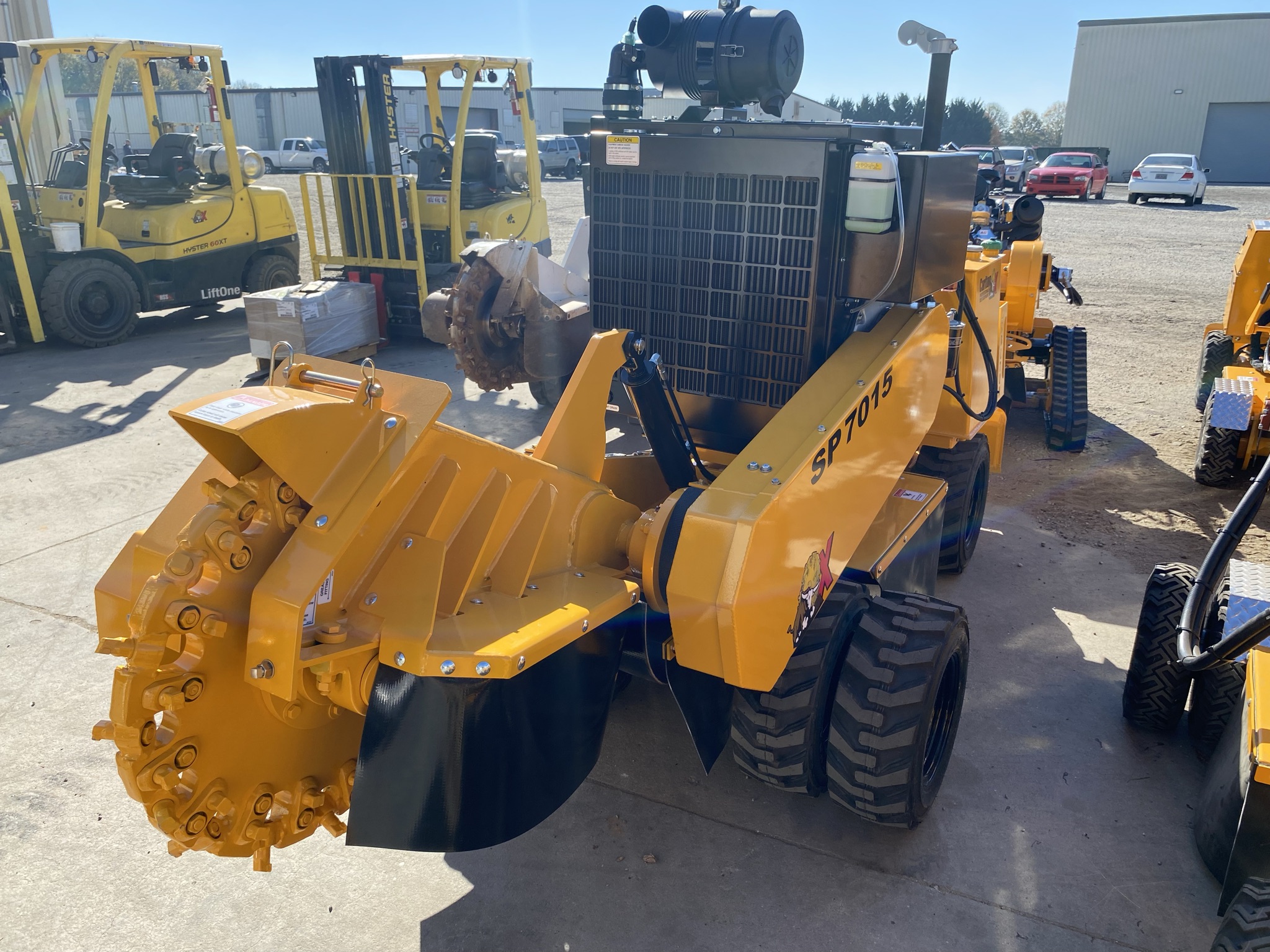

SP7015 Wheeled Stump Grinder
Fast Across The Ground. Fierce At The Stump.
The Carlton 7015 Wheeled is aimed at high-output contractors who prefer the speed, simplicity and manoeuvrability of a wheeled grinder. It combines substantial cutting power with fast site movement and minimal surface disturbance, making it a strong choice for professionals covering multiple jobs, larger estates, roadside work and commercial grounds where access is relatively open and productivity is everything.
Product Specifications
Engine options
1. 74 HP Turbocharged 4 Cylinder Kohler Diesel Tier 4 Engine<br/>2. 74 HP Turbocharged 4 Cylinder Kubota Diesel Tier 4 Engine
Cutter depth below ground
15″ (HD = 18″)
Cutter height above ground
43″ (HD = 48″)
Cutter head swing
70″ Arc (HD = 72″ Arc)
Number of teeth on cutter wheel
48 or 44-Razor Wheel / 32-Standard Wheel
Cutter wheel diameter with teeth
28″
Cutter wheel thickness
1 1/2″
Fuel tank capacity
9.6 gallons (HD = 18 gal.)
Hydraulic capacity
9 gallons (HD = 15 gal.)
Machine width
35″ Track Width Retracted<br/>48″ Track Width Extended
Ground pressure
5.3 psi
Machine height
73 1/2″
Machine length
130″ (HD = 151″)
Total weight
5820 lbs. (HD = 6400 lbs.)
DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING
