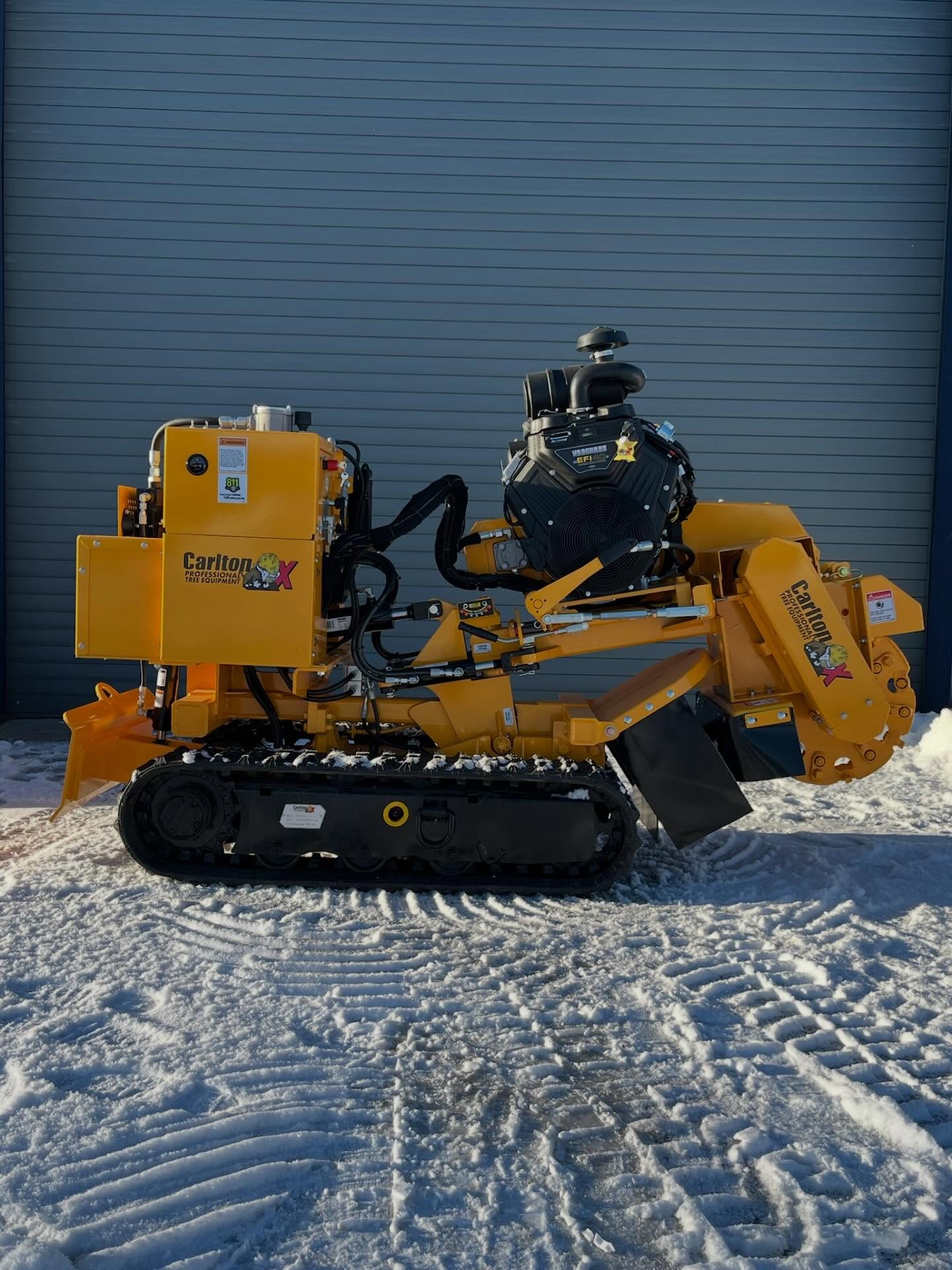

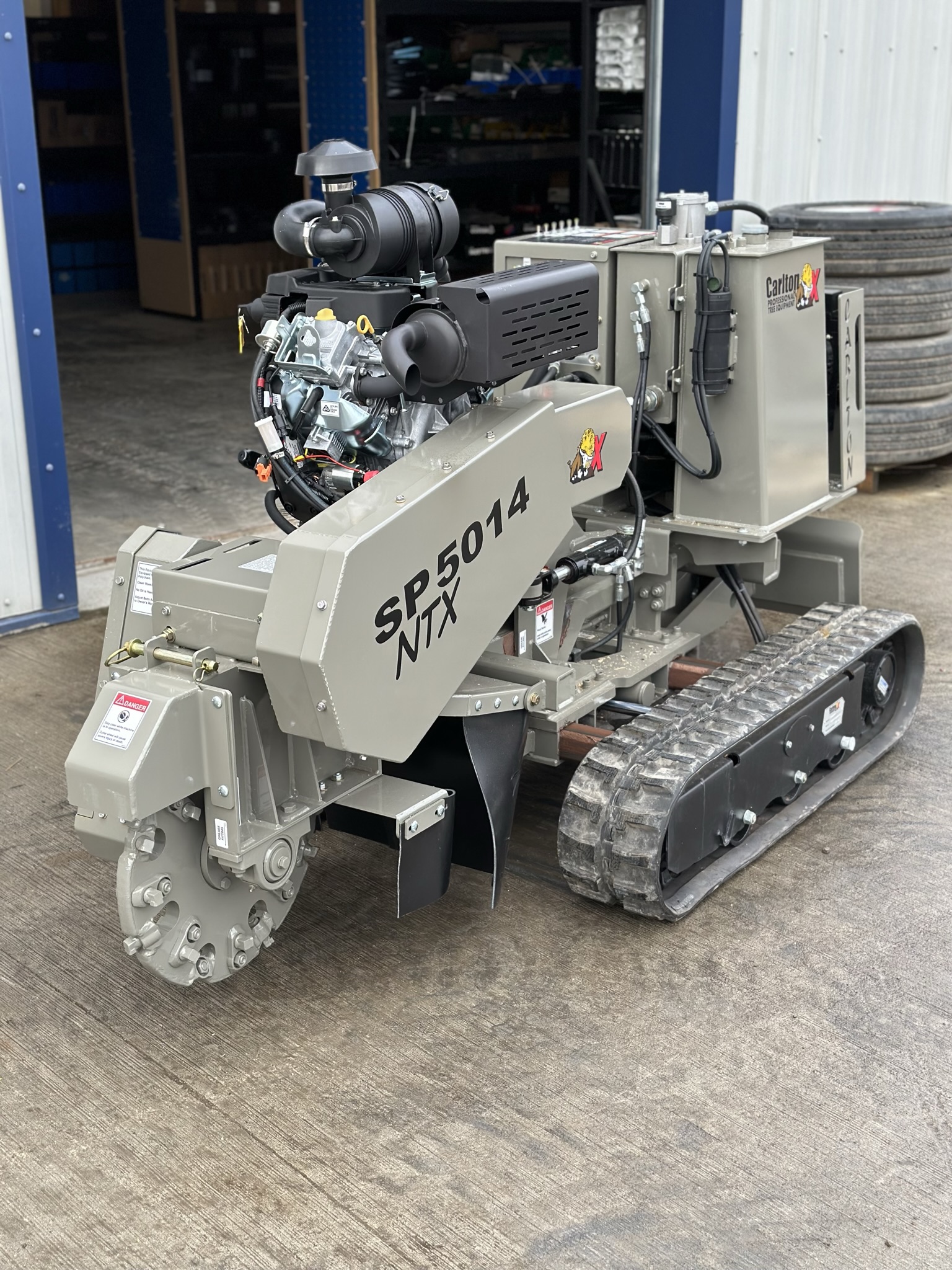

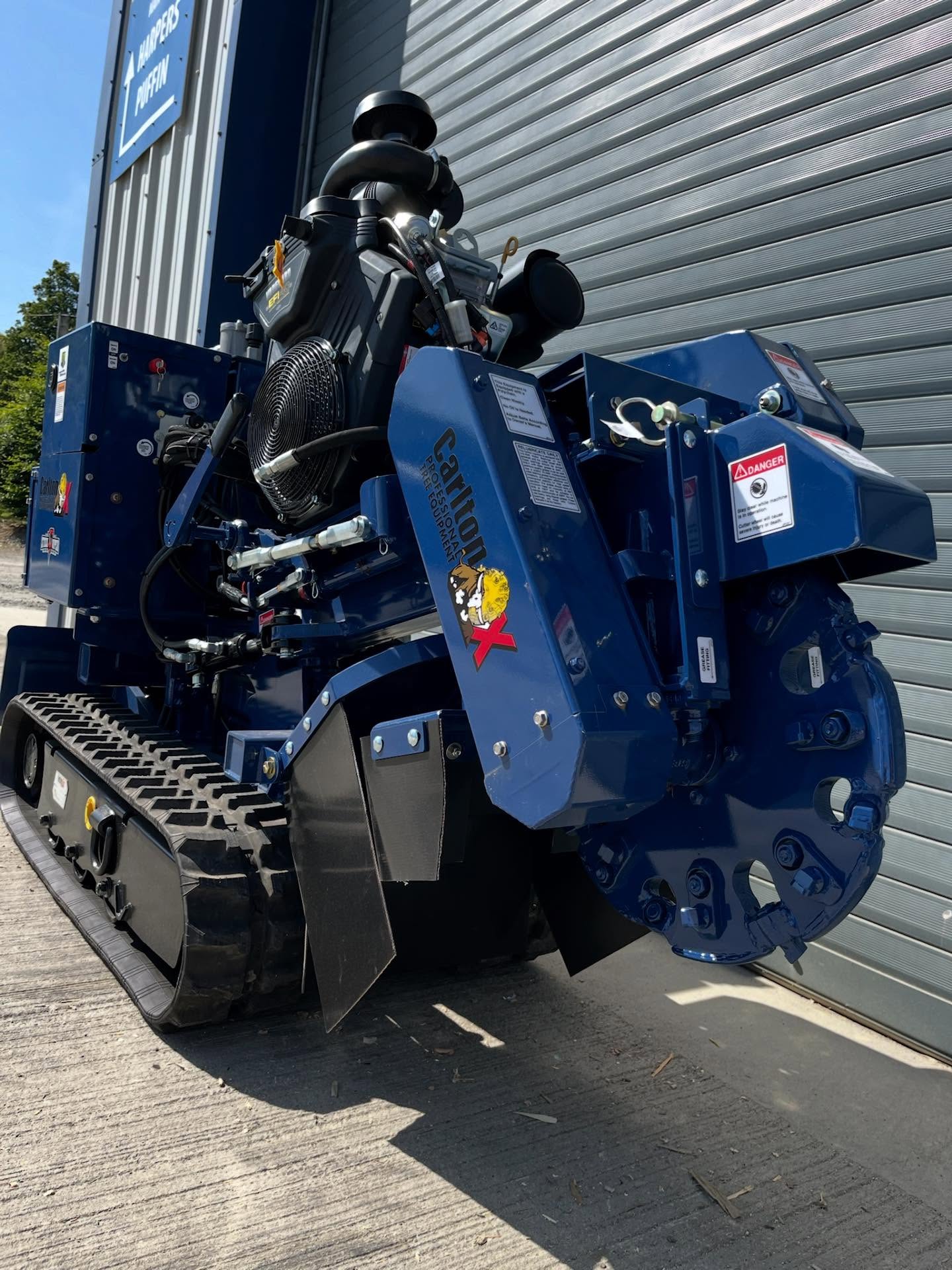

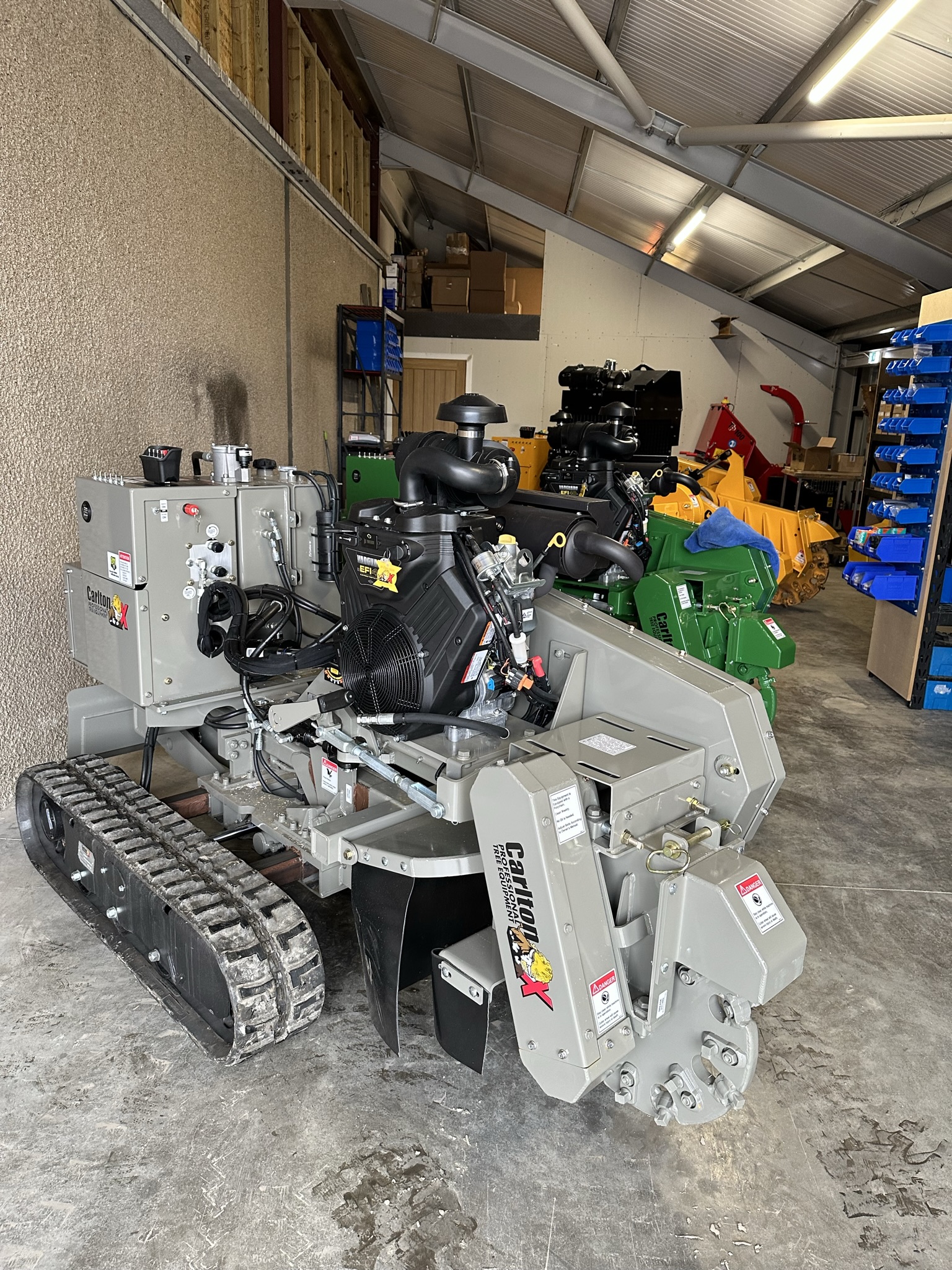

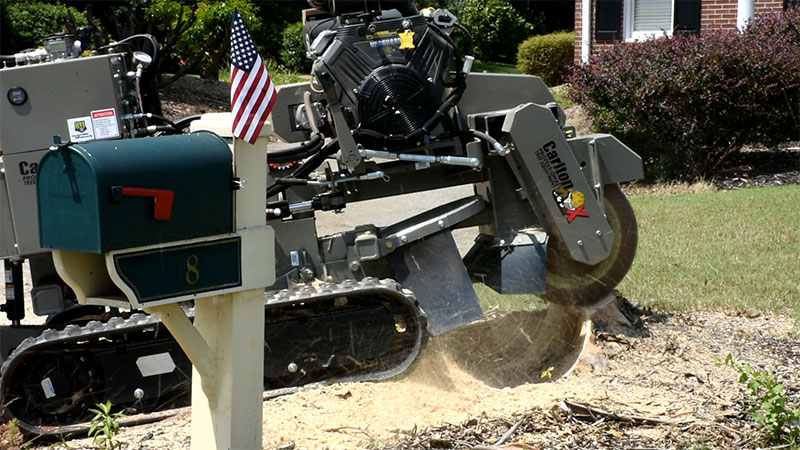

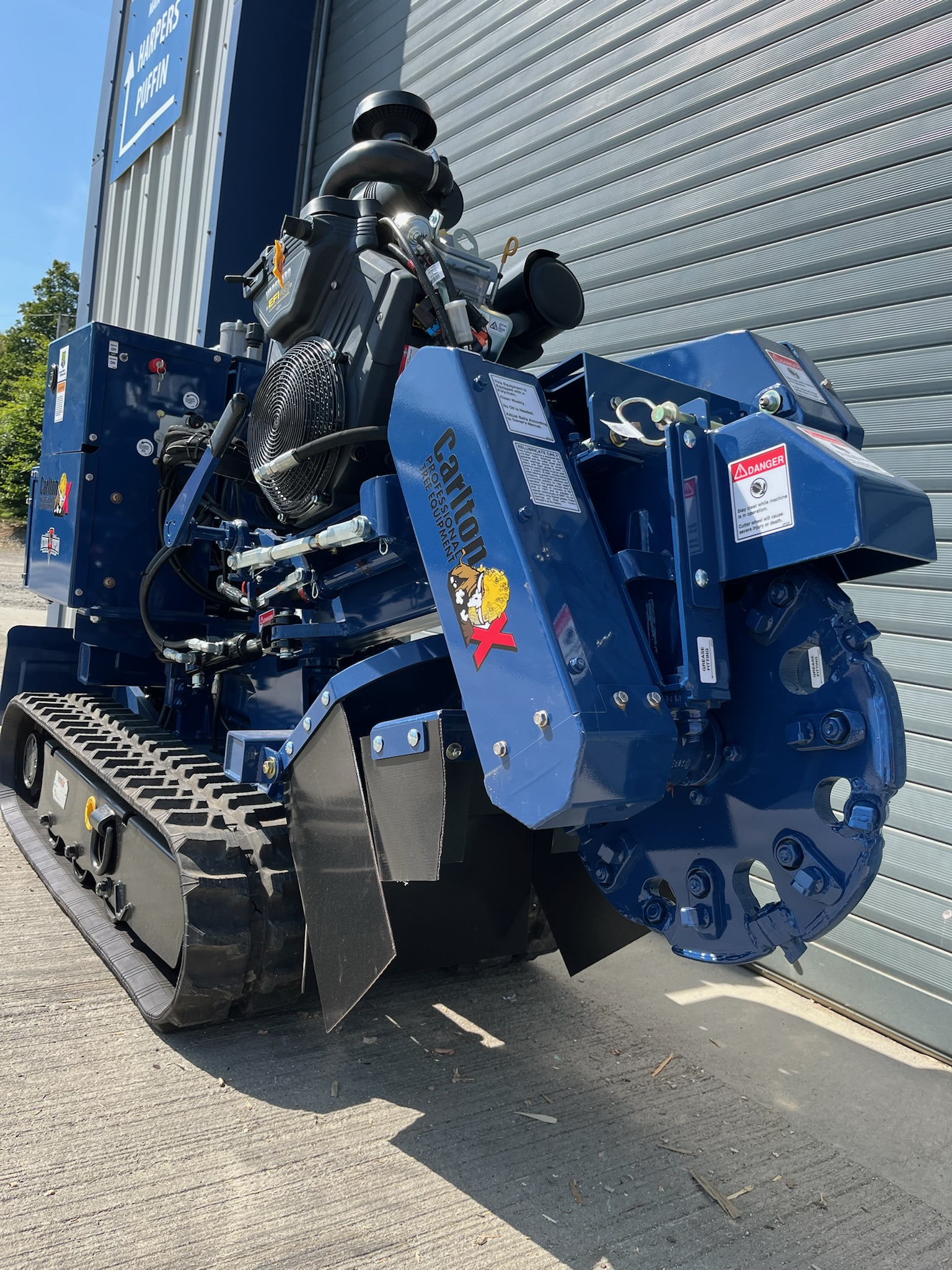

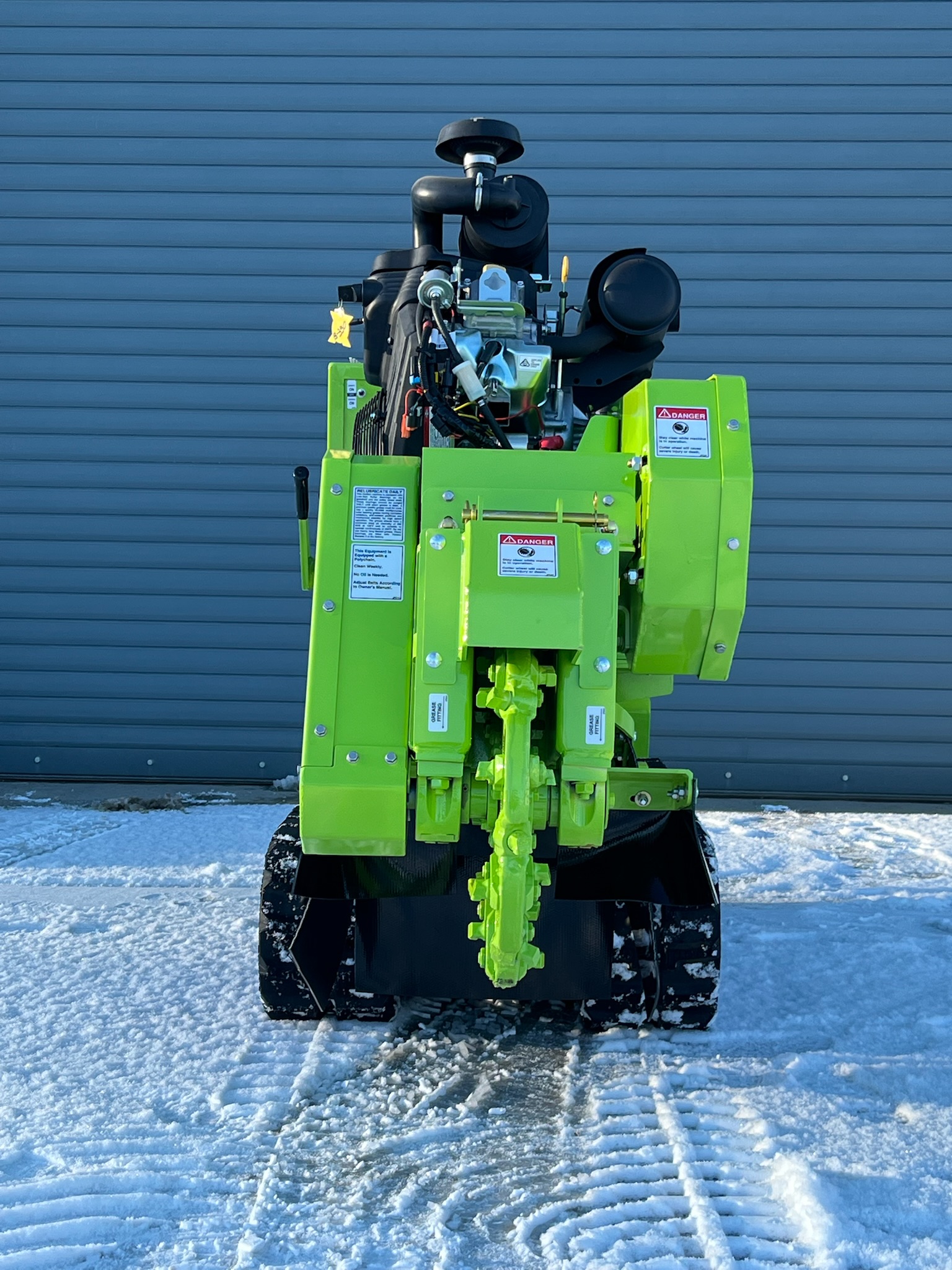

SP5014NTX Stump Grinder

The industry leader in high-performance root removal.

Technical Overview

Engine options

40 HP Vanguard EFI Gas

Cutting depth below ground

12″

Cutting height above ground

25″

Cutter head swing

43″ ARC

Number of teeth on cutter wheel

36 or 24-Razor Wheel / 20-Standard Wheel

Cutter wheel diameter w/teeth

21″

Cutter wheel thickness

1 1/4″ Blanchard ground

Fuel tank capacity

11 gallons

Hydraulic tank capacity

5 gallons

Machine width (Retracted)

29.5″

Machine width (Extended)

46.5″

Machine height

63″

Overall length

96″

Total weight

2,700 lbs.

DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING

Contact us directly for more information.

Call our product experts today for detailed specifications and pricing.
Sales: sales@steelviper.co.uk
Phone: 01524 805215

Enquire

Gallery

01 / 08

Key Features

Approximately 760 mm narrow-access width
Expandable tracks widening to approximately 1,150 mm

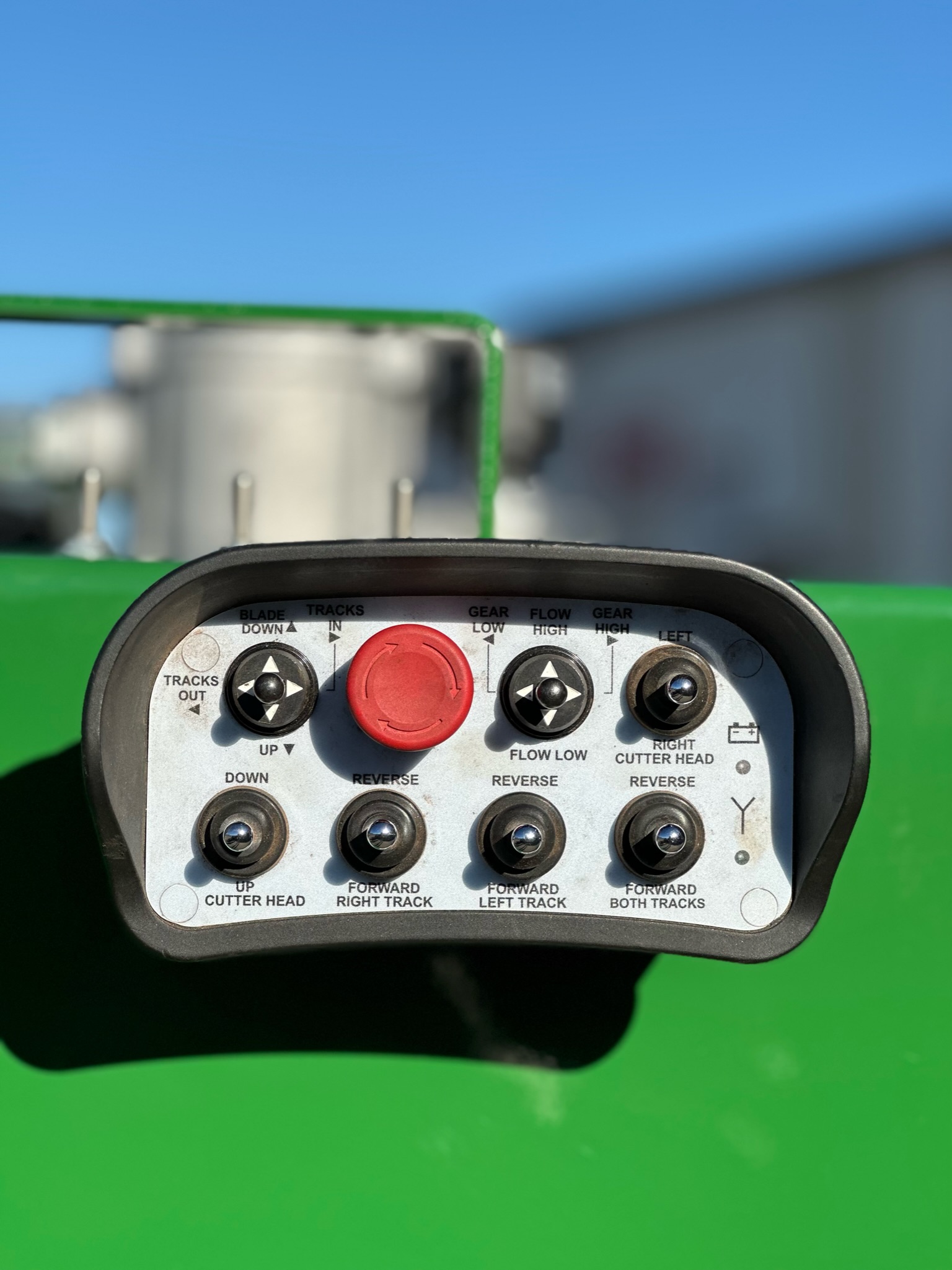

Wireless remote control

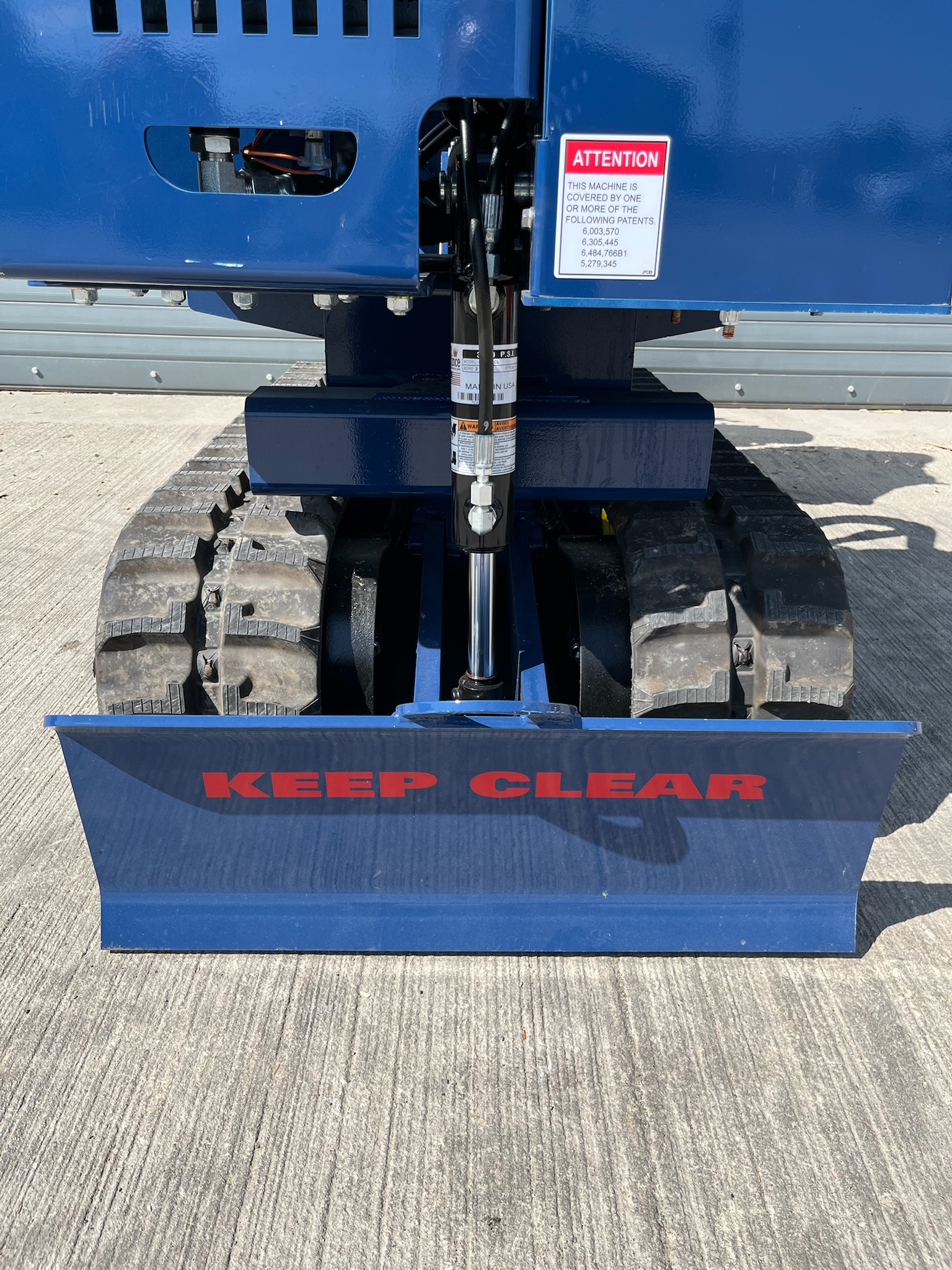

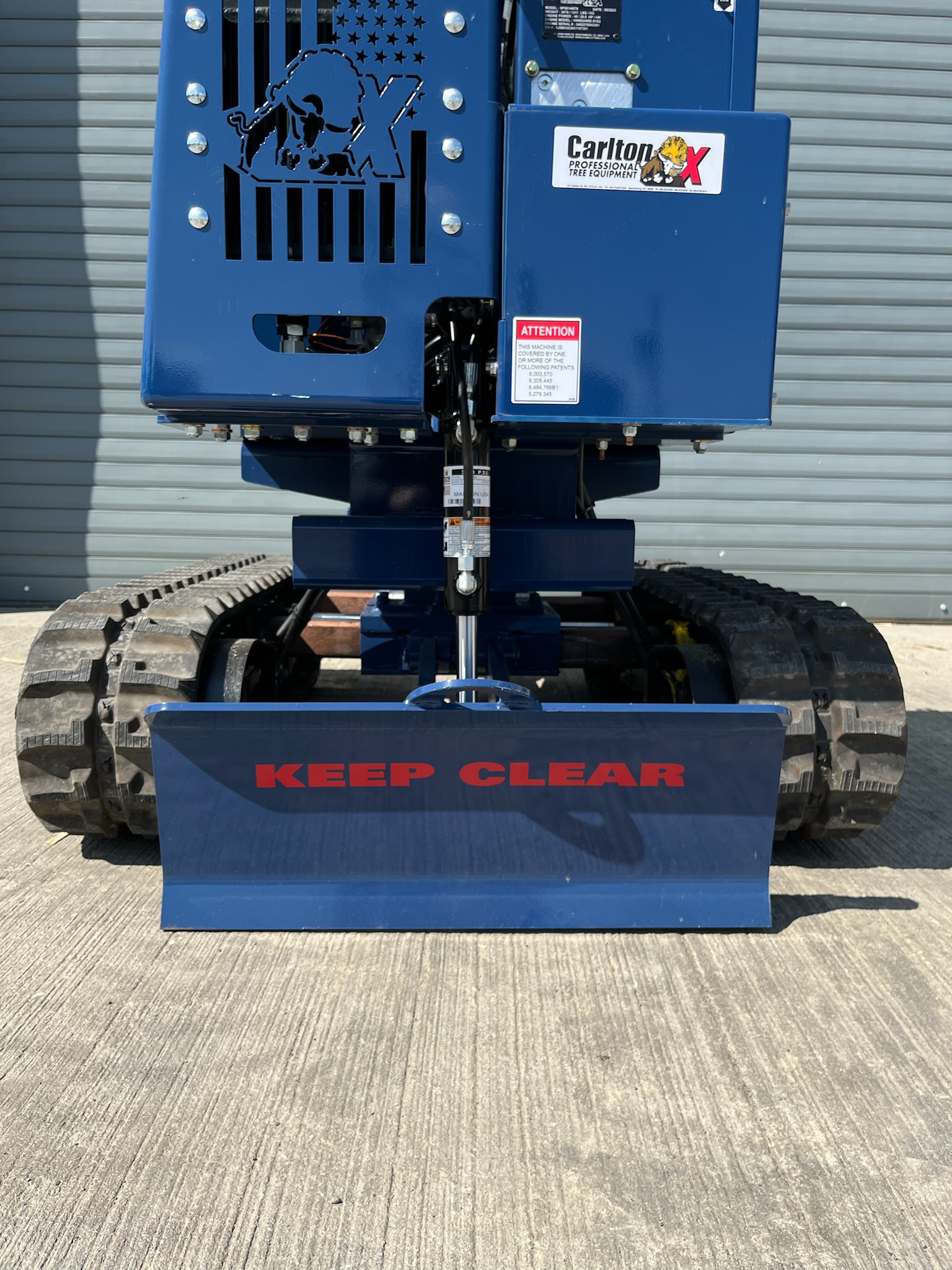

Rubber tracked undercarriage
Hydraulic track tensioning

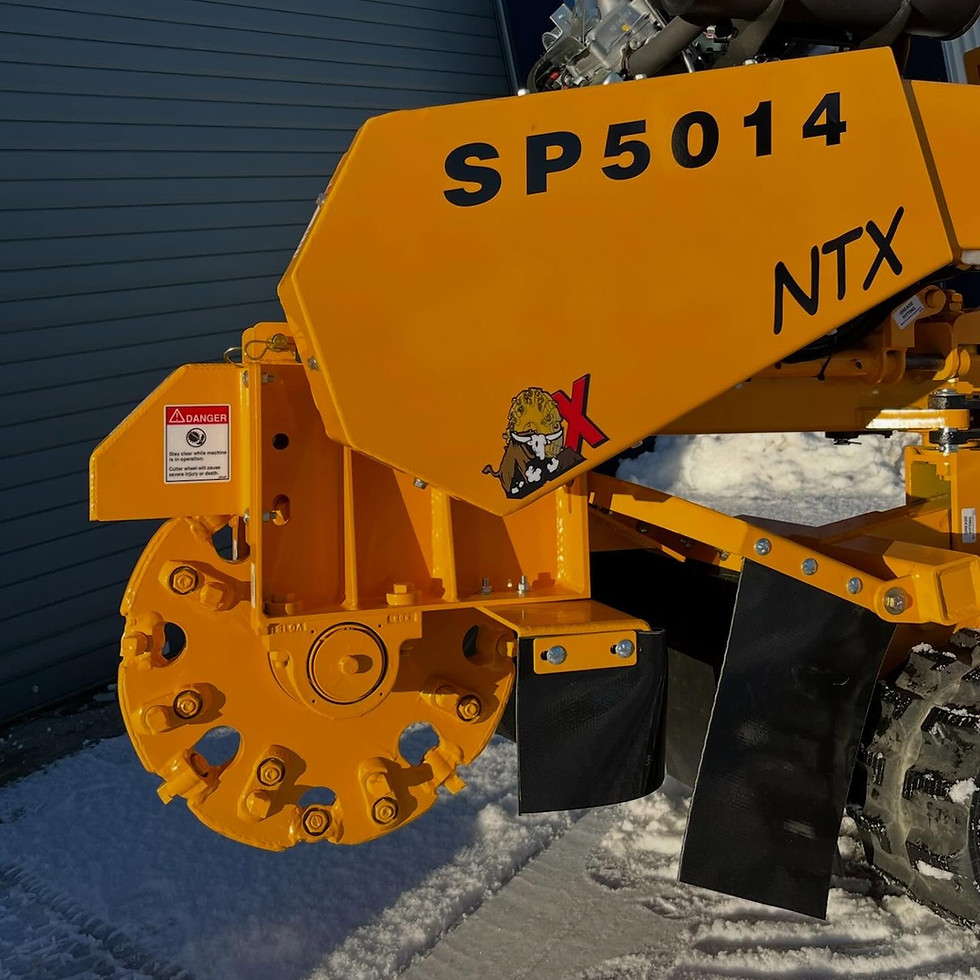

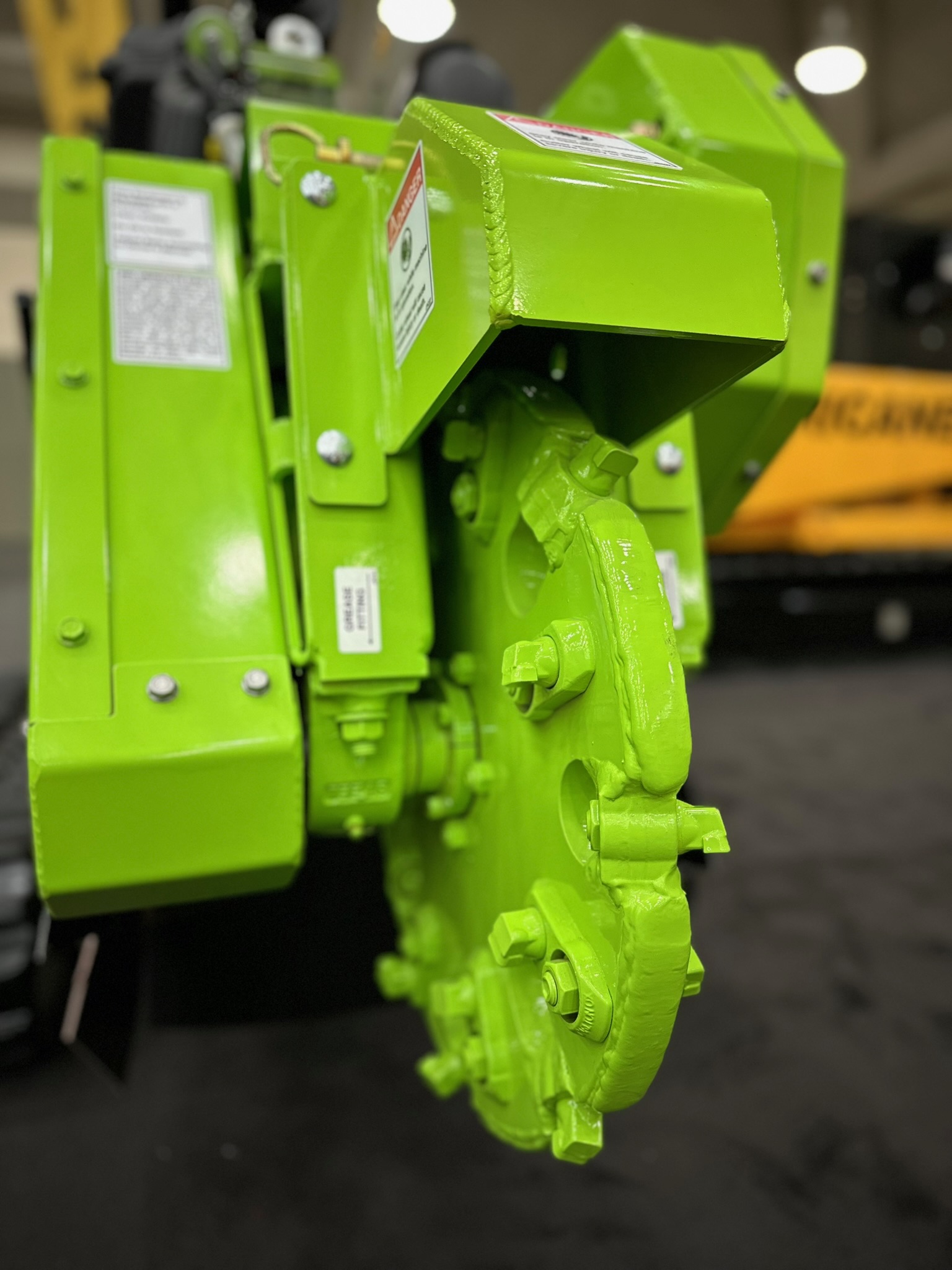

Large 21-inch cutter wheel
European Stage V-compliant engine configuration
Low ground pressure and strong traction

Reaches stumps behind gates and through restricted entrances
Expands into a stable grinding platform once on site
Gives the operator a clear view from the best working position
Reduces disturbance on lawns and sensitive ground

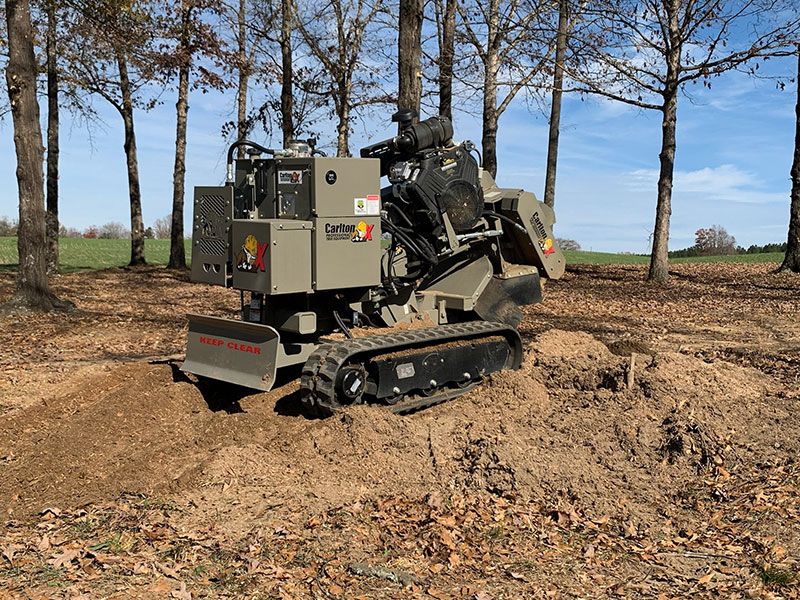

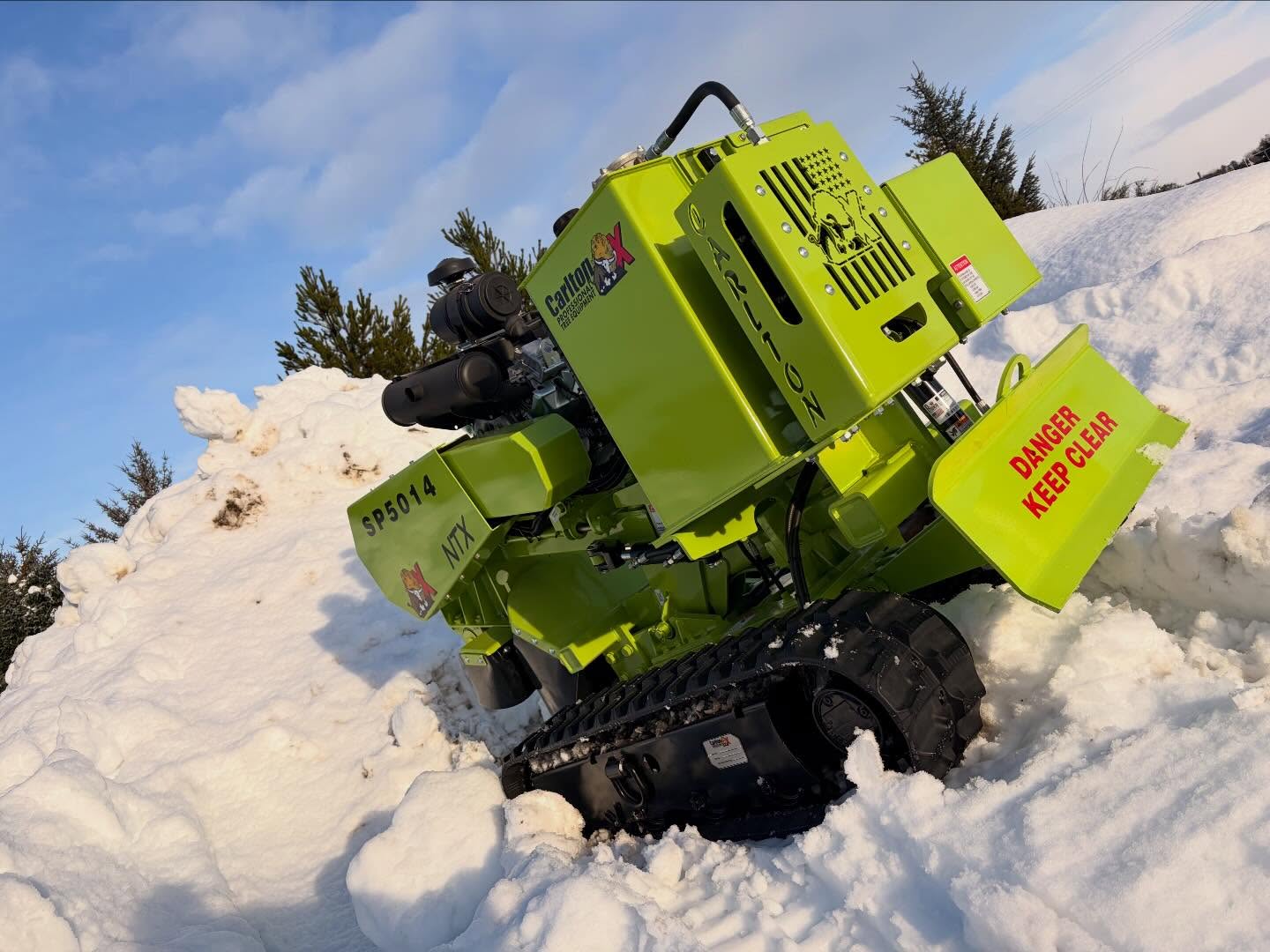

Handles slopes, uneven terrain and difficult access confidently
Combines compact dimensions with professional productivity

Why The 5014

Built for arborists and contractors who regularly face narrow gates, confined gardens and difficult terrain, the Carlton 5014 NTX brings serious professional grinding capability into spaces larger machines cannot reach. Its compact travelling width, expandable tracked undercarriage and wireless remote control make it an ideal everyday machine for residential work, where access, ground protection and operator visibility matter just as much as cutting performance.
