Handles larger stumps more efficiently than compact grinders
-
Maintains traction on slopes, soft ground and difficult terrain
-
Provides a stable platform while grinding under load
-
Reduces unnecessary repositioning around demanding stumps
-
Gives growing contractors greater daily capacity
-
Bridges the gap between compact and heavy commercial machines
-

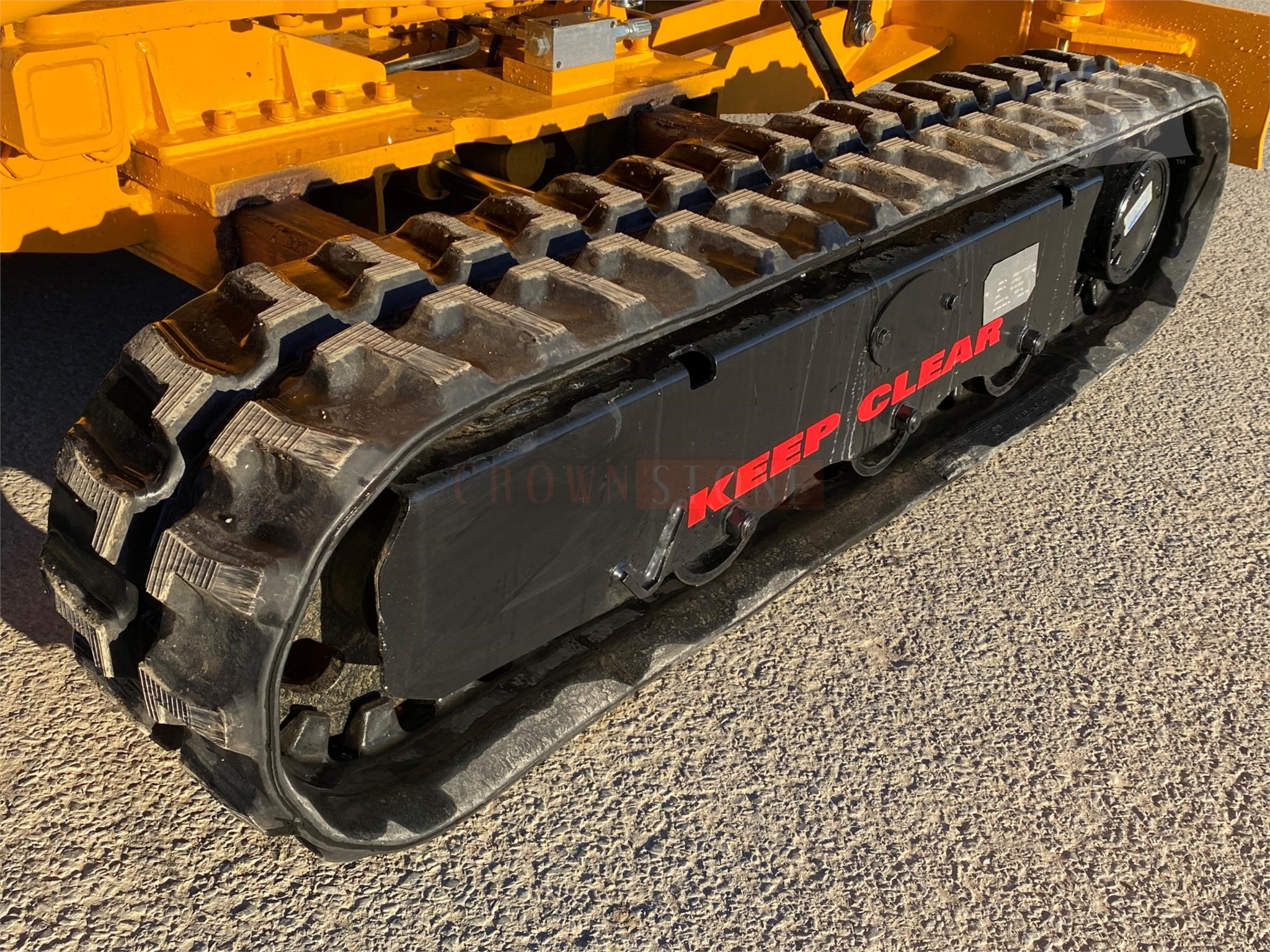

Tracked self-propelled platform
-
Professional high-output cutting system
-
Strong traction on uneven ground
-
Stable working footprint
-
Heavy-duty Carlton construction
-

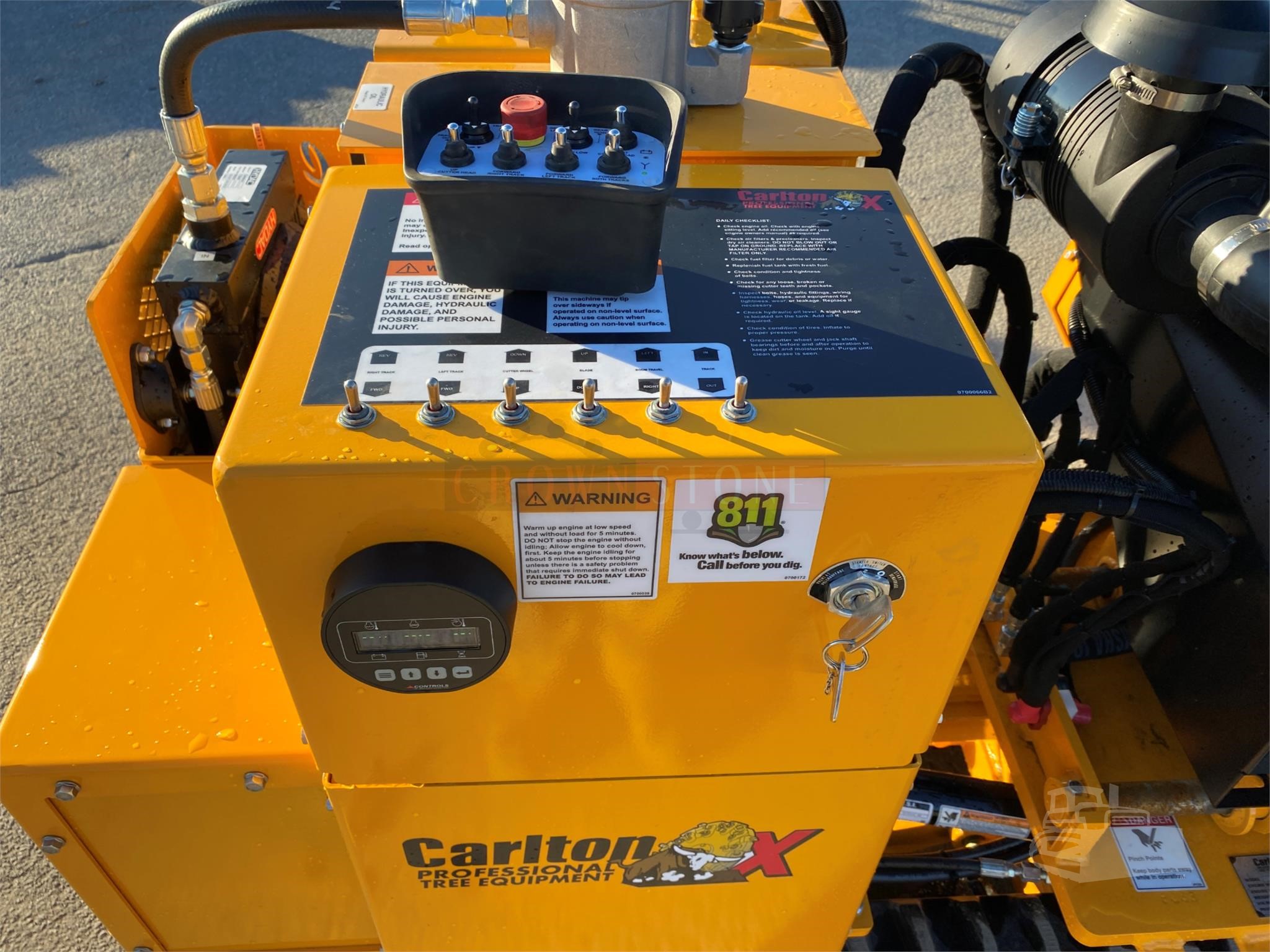

Operator-focused hydraulic controls
-
Designed for sustained professional use
Key Features
Why The 6016

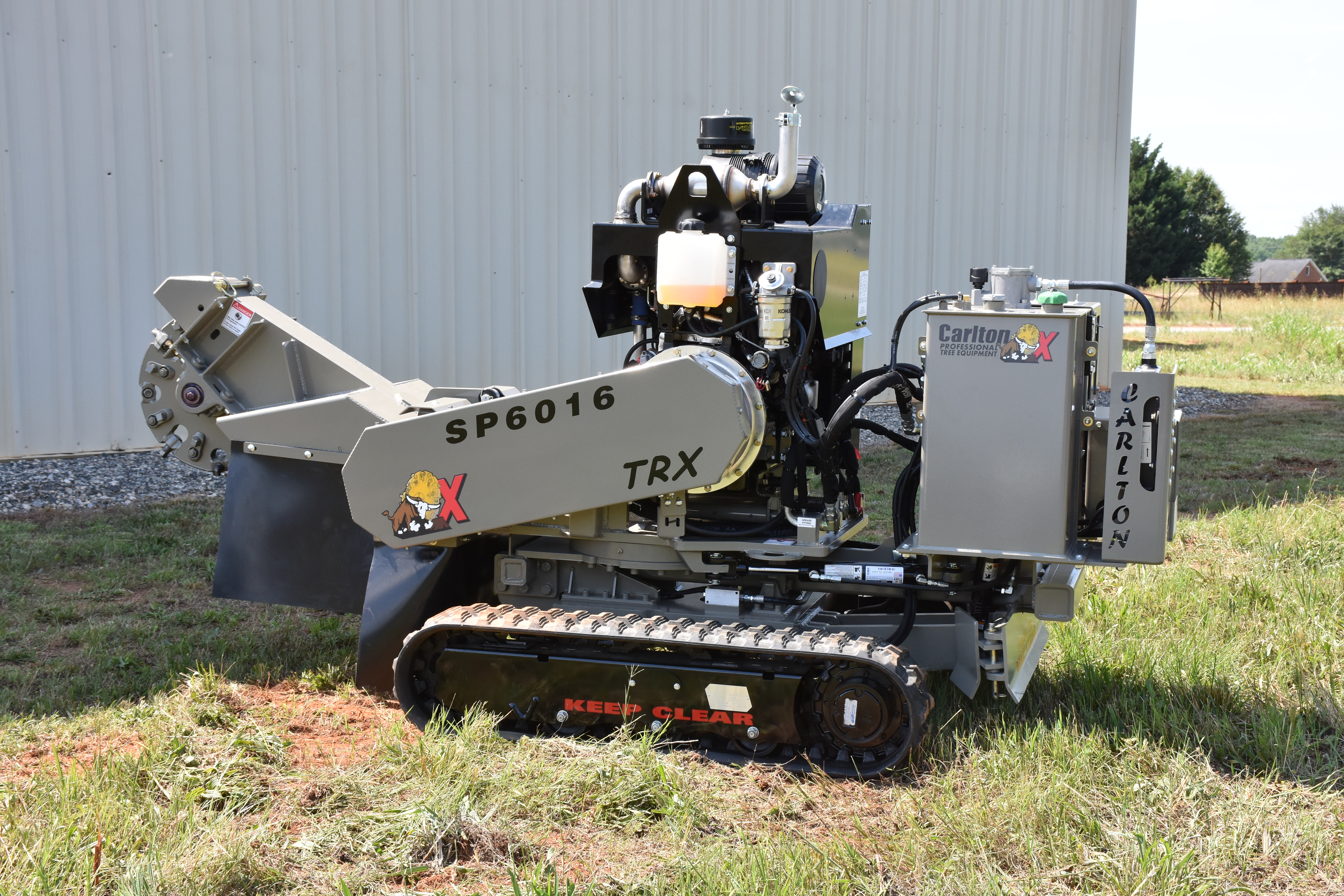

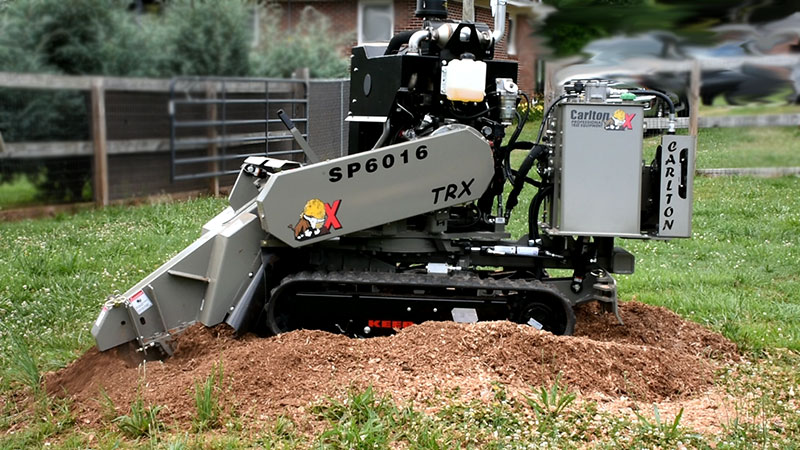

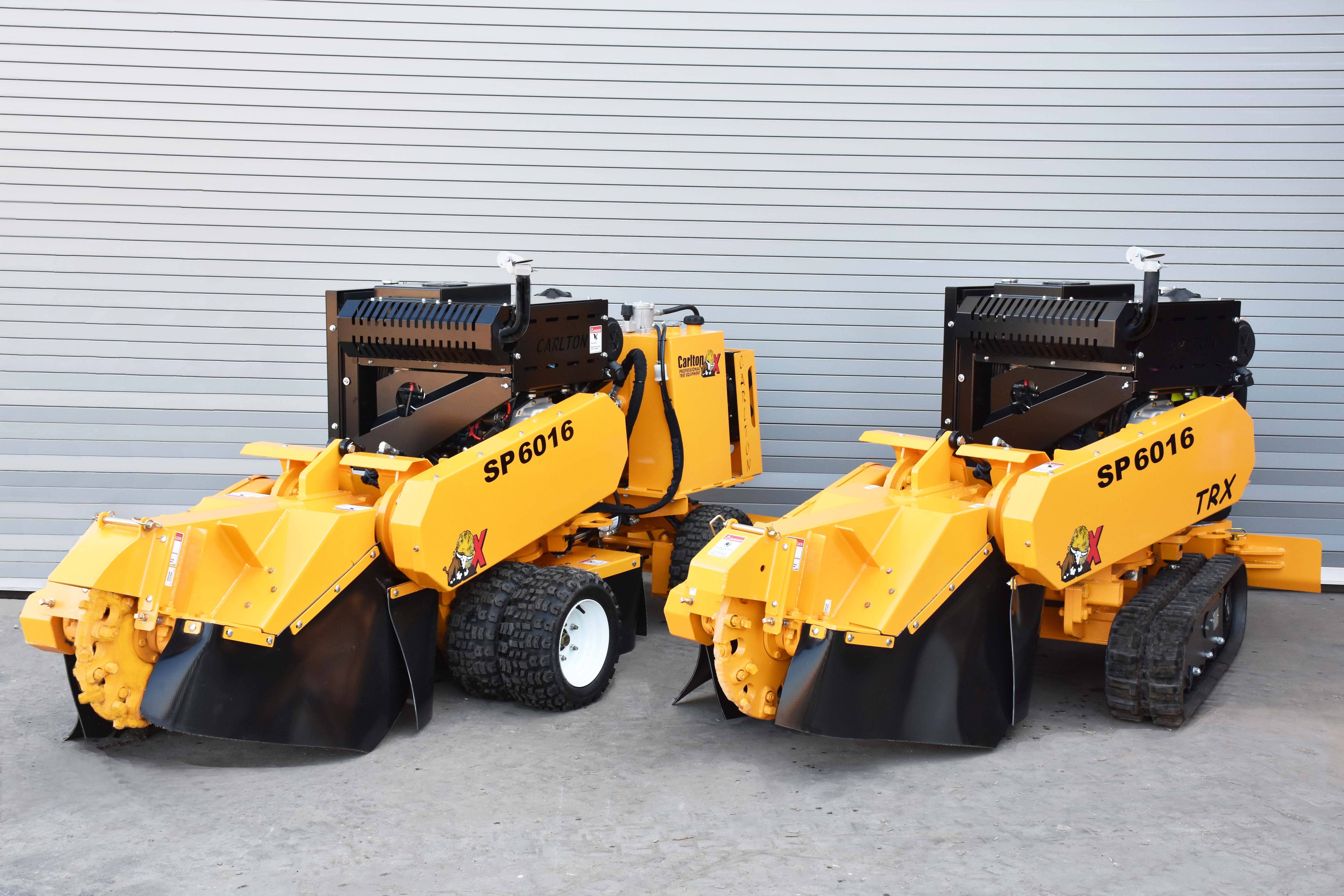

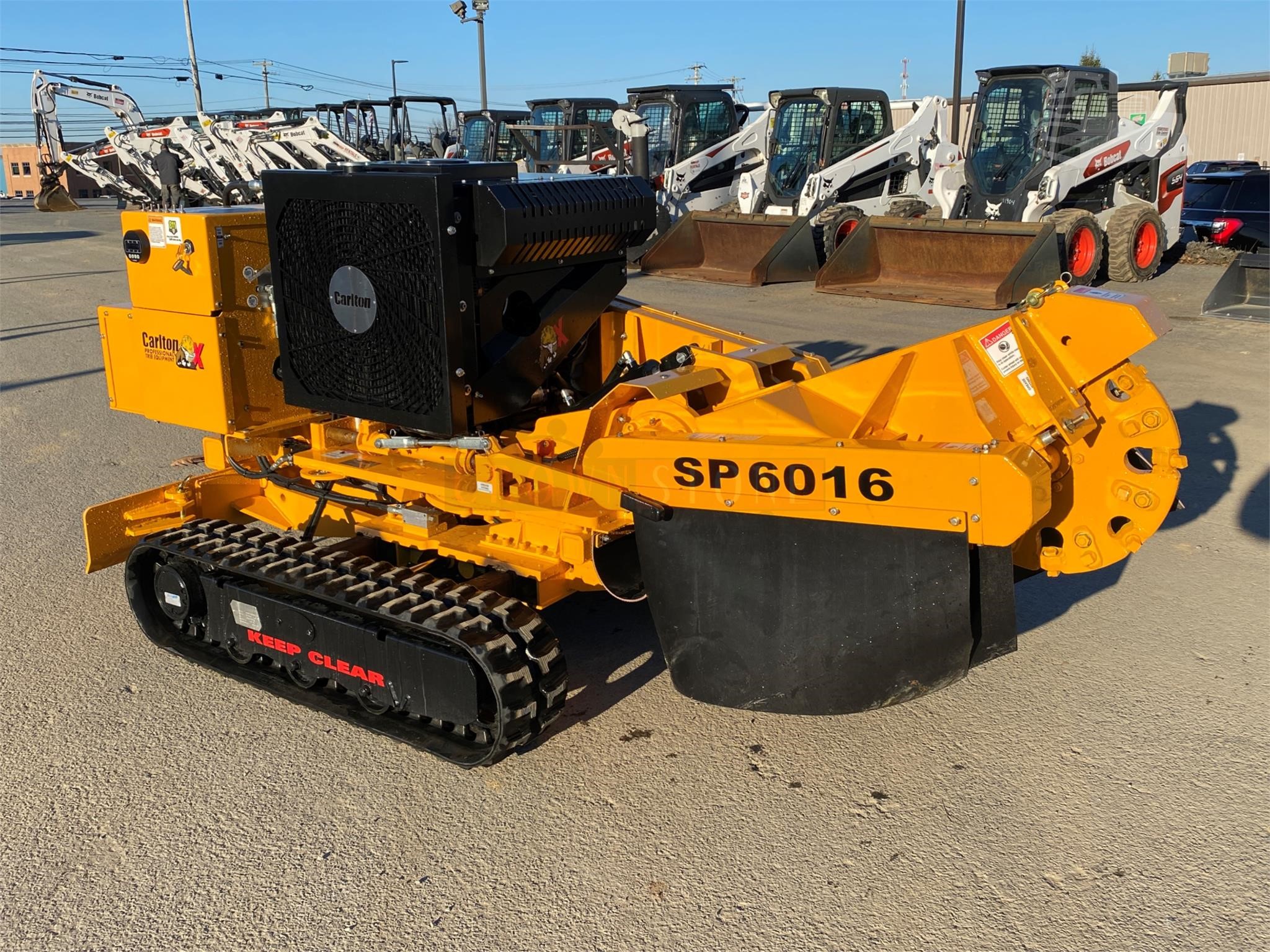

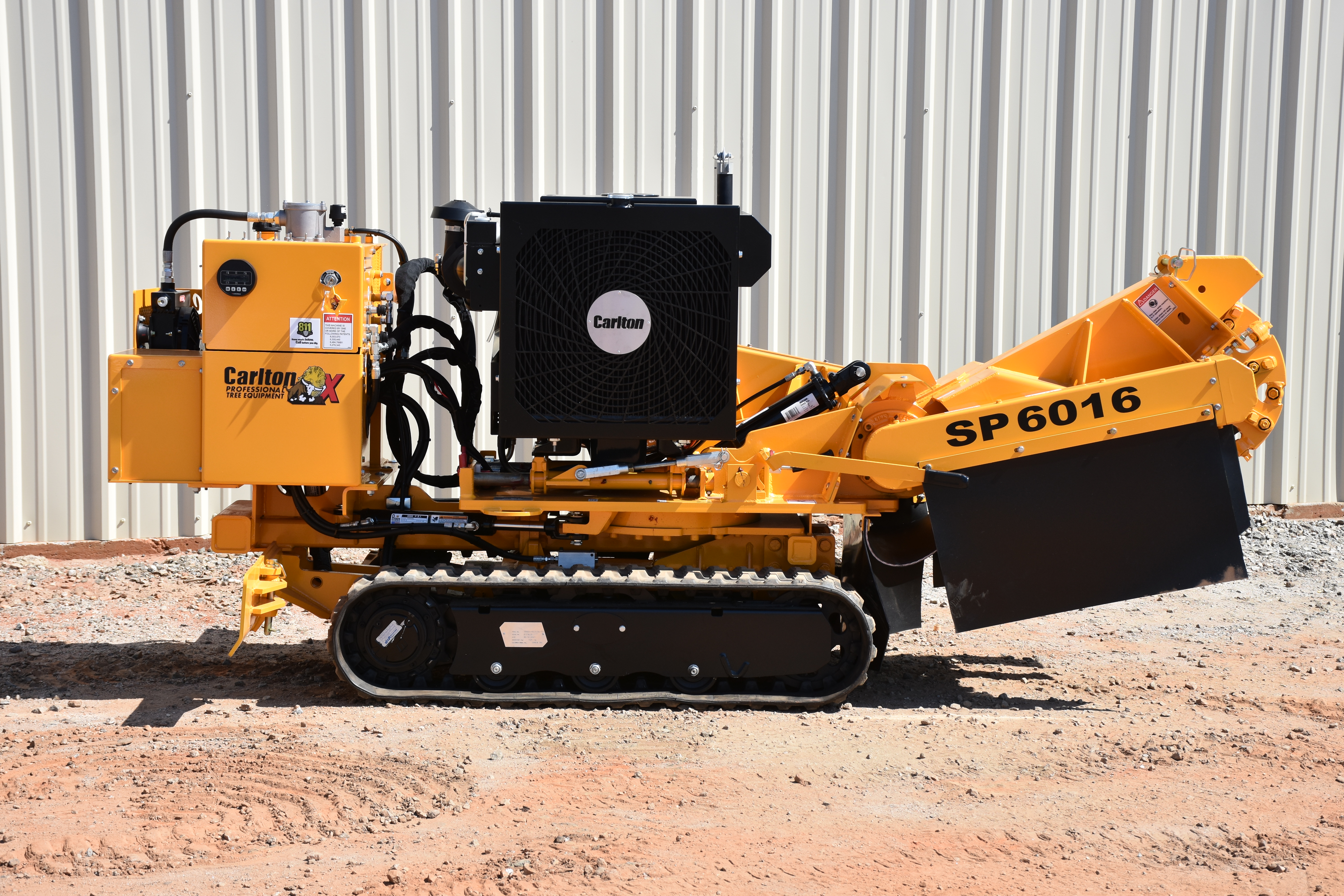

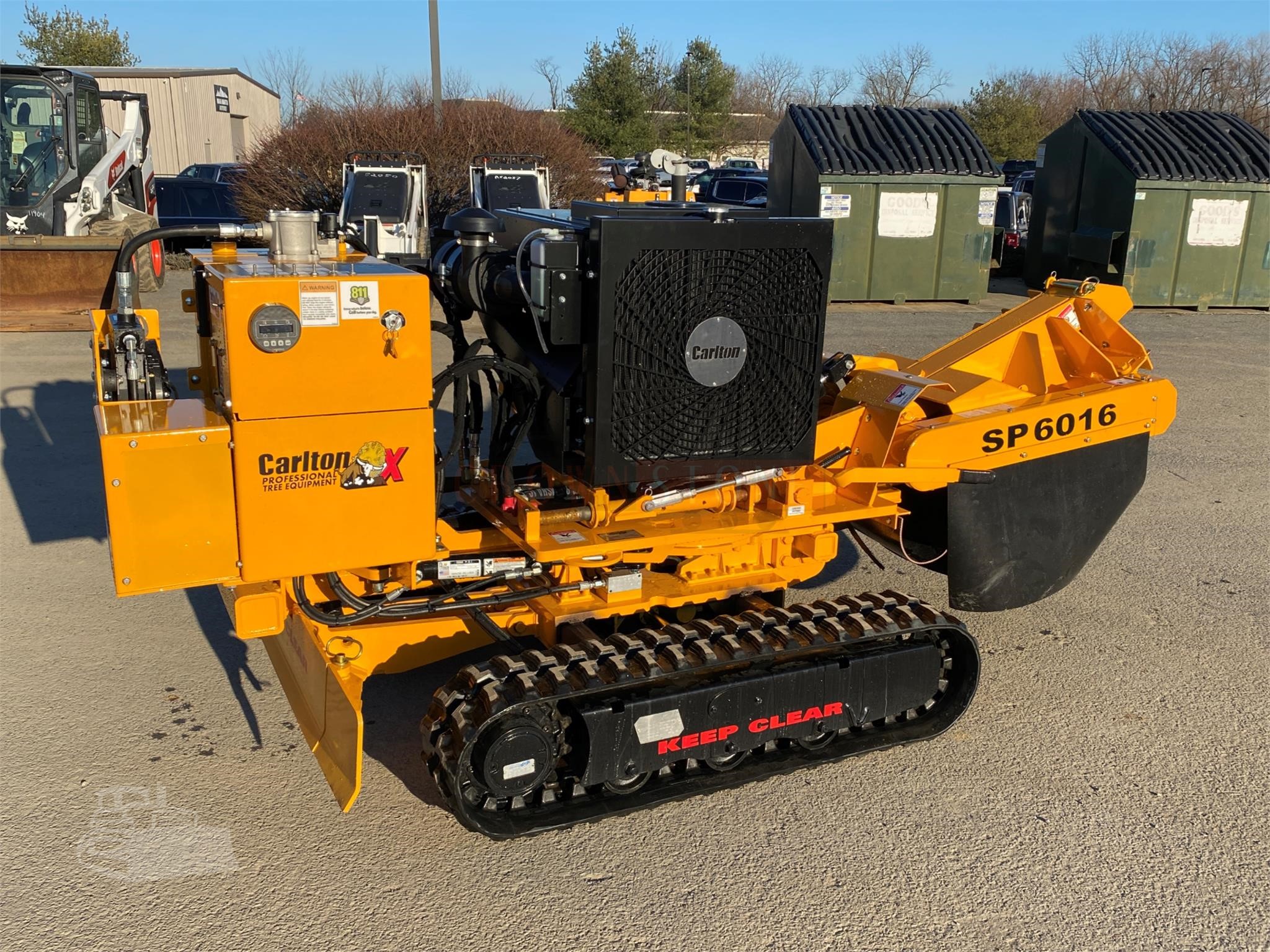

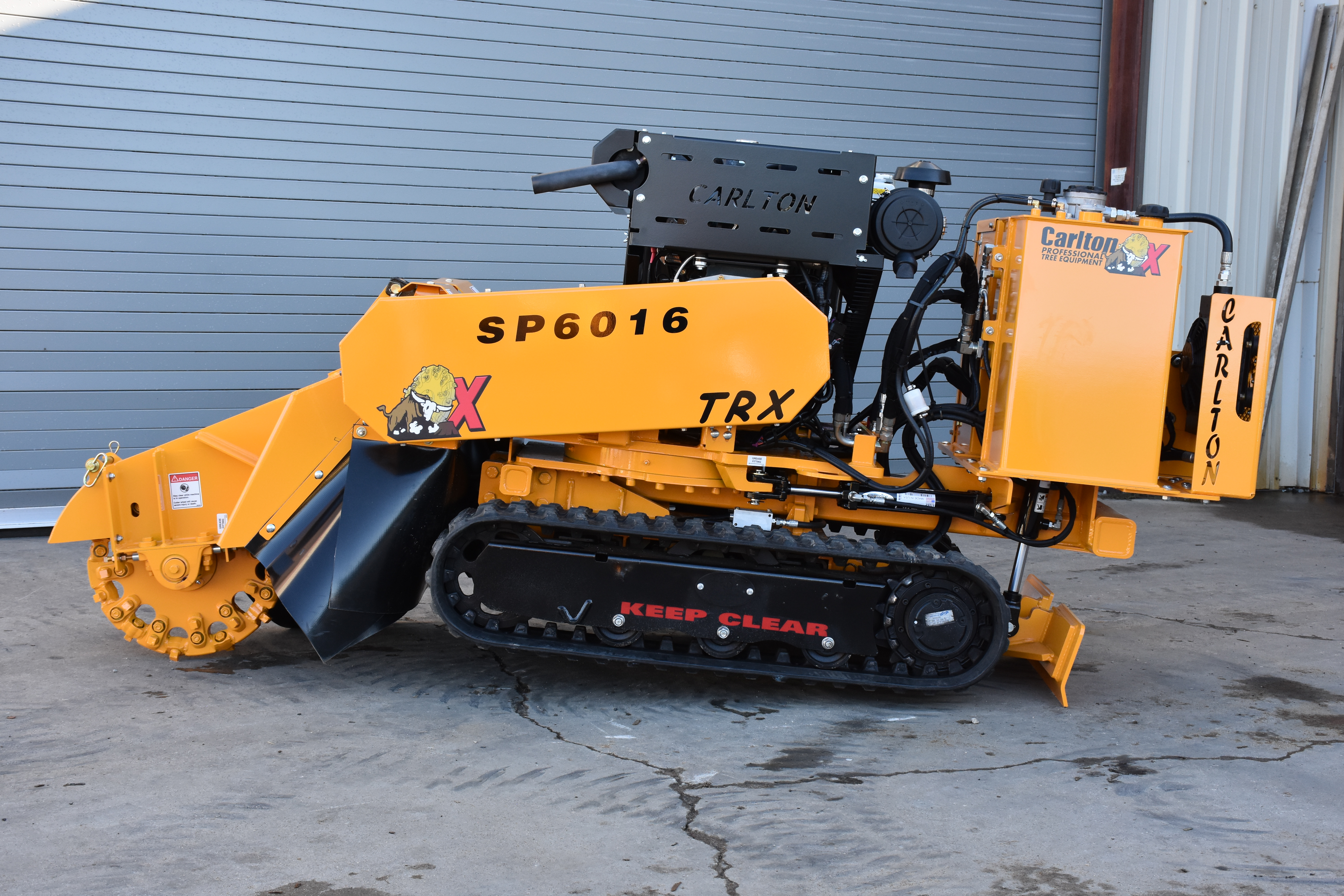

SP6016NTX Stump Grinder
More Power. More Ground Covered.
The Carlton 6016 TRX is positioned for professional contractors who need a step up in grinding power while retaining the traction, control and versatility of a tracked machine. Designed for demanding residential and commercial work, it provides the stability to grind confidently on uneven ground while remaining compact enough for operators who cannot justify moving immediately into Carlton’s largest machines.
Technical Overview
Engine options
54 HP Kubota Gas or 56 HP Kohler Diesel
Cutting depth below ground
16″
Cutting height above ground
25″
Cutter head swing
36″
Number of teeth on cutter wheel
36-Razor Wheel / 20-Standard Wheel
Cutter wheel diameter w/teeth
58″ Arc
Cutter wheel thickness
1 1/4″
Fuel tank capacity
11 gallons
Hydraulic tank capacity
5 gallons
Machine width (Retracted)
29.5″
Machine width (Extended)
54.5″ – Wide Stance, 35″ – Narrow Stance
Machine height
67″
Overall length
123″
Total weight
4,000 lbs.
DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING
