Moves quickly between stumps and across accessible sites
-
Offers greater output than smaller wheeled machines
-
Manoeuvres easily around gardens and commercial grounds
-
Reduces time spent transporting and positioning the machine
-
Provides a strong balance of mobility and grinding capacity
-
Helps contractors complete more work within the day
-
Self-propelled wheeled design
-
Hydraulic steering
-
Stable professional working stance
-
High-output cutter-wheel system
-
Heavy-duty frame construction
-
Responsive hydraulic operation
-
Built for regular contractor use
Key Features
Why The 6016

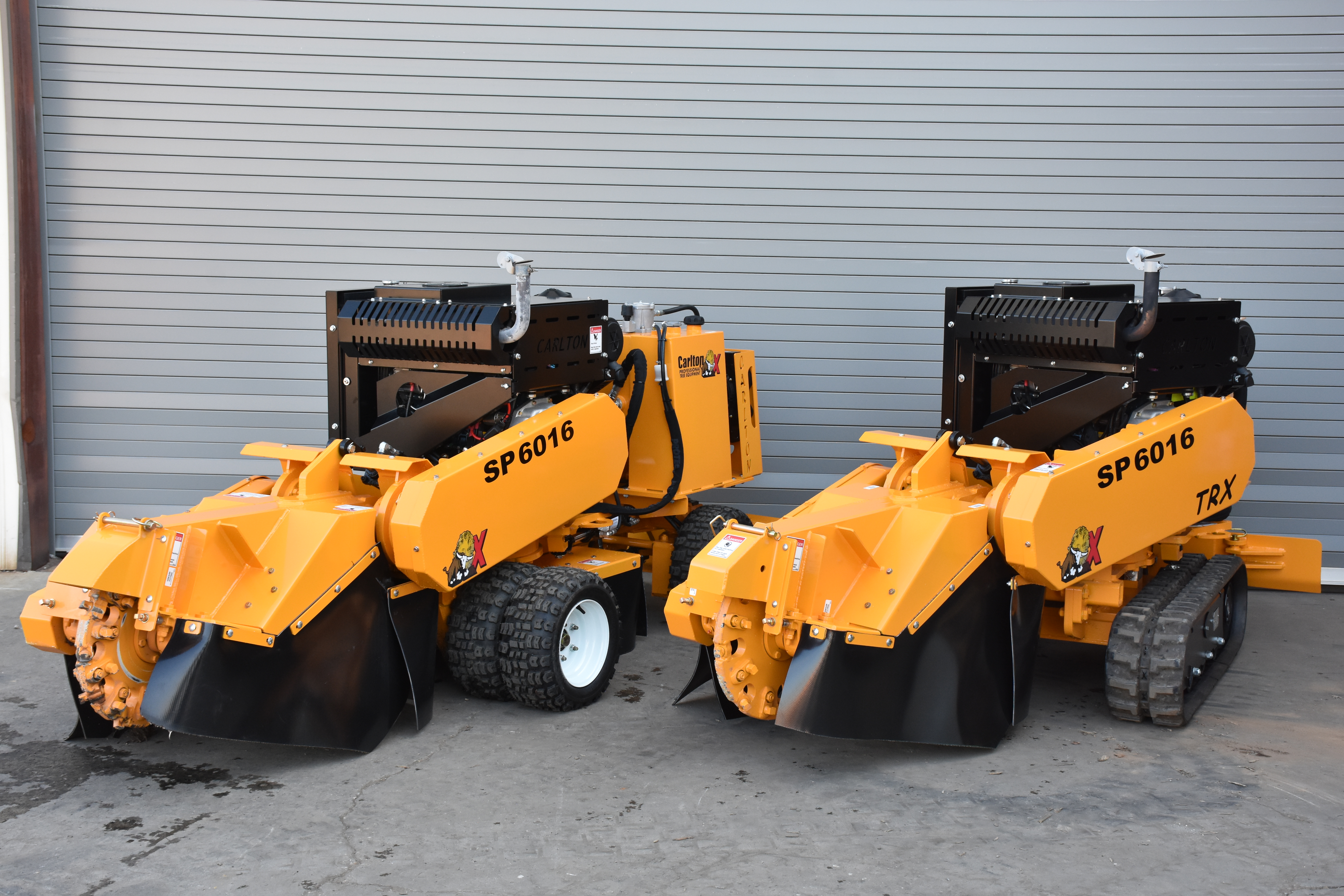

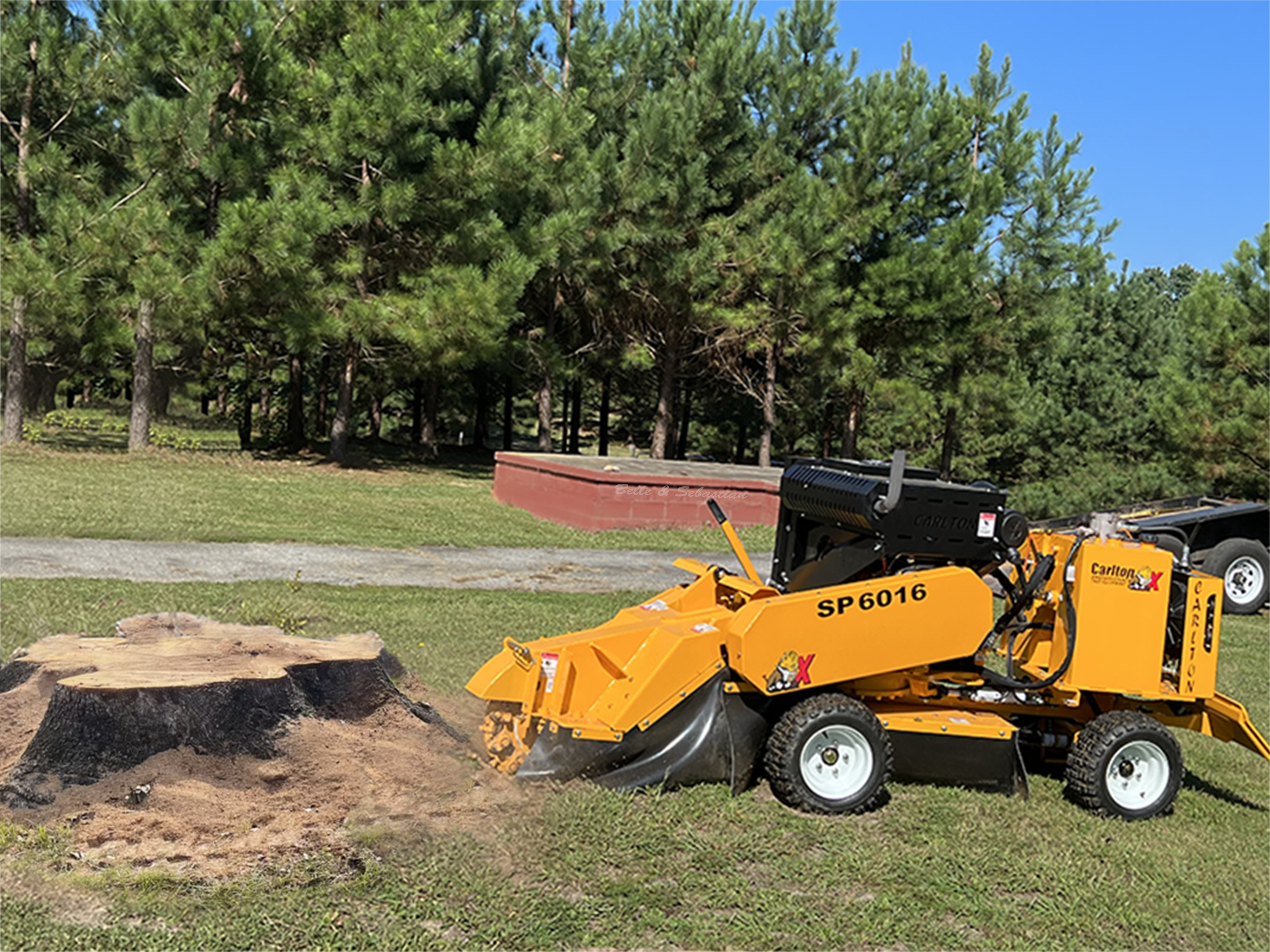

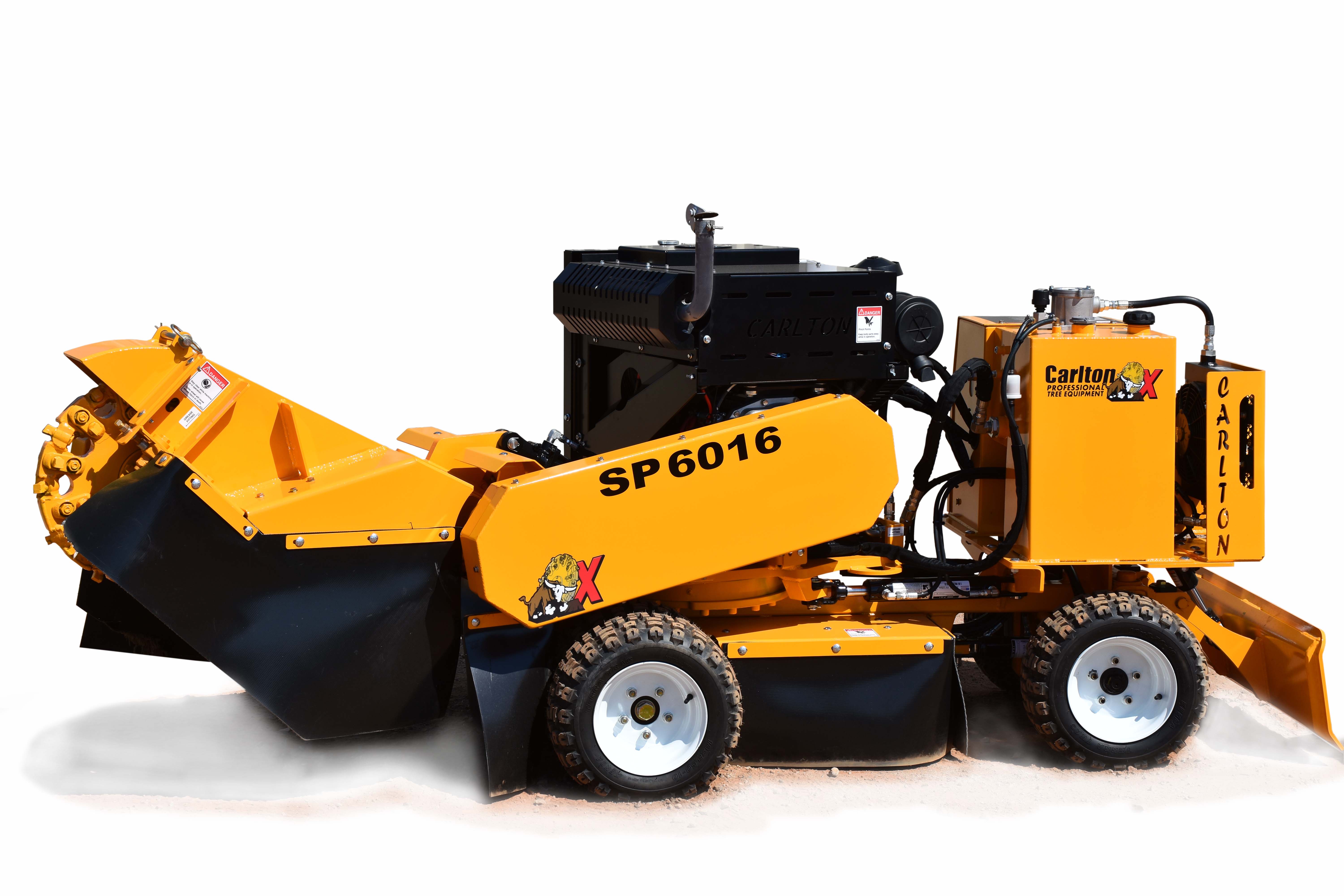

SP6016 Wheeled Stump Grinder
Mobile Power For Growing Workloads.
The Carlton 6016 Wheeled is built for contractors who want increased grinding capacity without losing the speed and simplicity of a wheeled machine. Well suited to accessible residential sites, estates, commercial grounds and multi-job working days, it combines responsive manoeuvrability with the power needed to move beyond lighter stump-removal work.
Product Specifications
Engine options
54 HP Kubota Gas
Cutting depth below ground
16″
Cutting height above ground
36″
Cutter head swing
60″
Number of teeth on cutter wheel
36 Razor Wheel / 20-Standard Wheel
Cutter wheel diameter w/teeth
21″
Cutter wheel thickness
1 1/4″
Fuel tank capacity
11 gallons
Hydraulic tank capacity
5 gallons
Machine width (Retracted)
52″ with duals – Wide Stance, 35″ – Narrow Stance
Machine width (Extended)
46.5″
Machine height
50″
Overall length
126″
Total weight
3,200 lbs.
DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING
